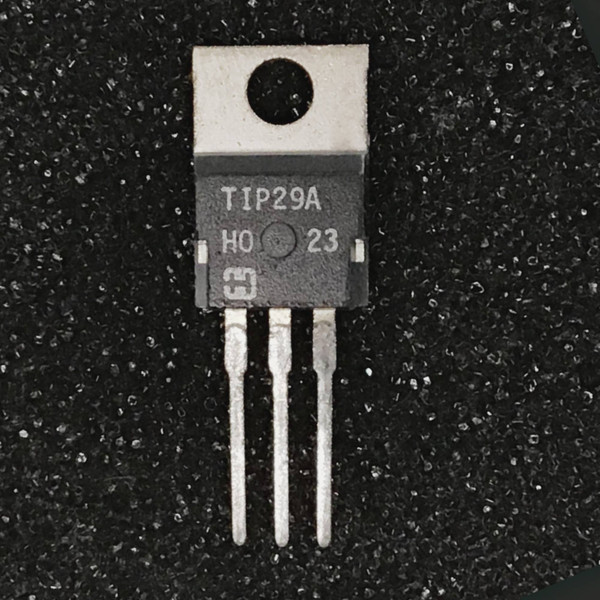

Harris TIP29A NPN Silicon Transistor for 60 V, 1 A Switching and Linear Stages in a TO-220 Case
Condition
Unused, new old stock (NOS). Sold each. Markings legible: TIP29A with the Harris logo.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. Satisfaction guaranteed, every time.
Product Overview
Harris Semiconductor TIP29A: an NPN silicon power transistor in the TO-220 package, rated 60 V collector to emitter and 1 A continuous collector current. It handles general-purpose switching and linear amplification, from relay and lamp drivers to the driver stages of small power supplies and audio amplifiers.
Key Features
- NPN silicon bipolar power transistor
- VCEO 60 V, VCBO 60 V, VEBO 5 V
- Collector current 1 A continuous, 3 A peak
- Power dissipation 30 W at 25 C case temperature
- DC current gain hFE 40 minimum at 0.2 A, 15 to 75 at 1 A (VCE 4 V)
- Transition frequency fT 3 MHz minimum
- TO-220 case with a metal mounting tab and screw hole
Applications
- Switching a relay coil, solenoid or lamp from a logic or microcontroller output through a base resistor
- Driver and pass stages in small linear power supplies
- Repairing amplifiers, chargers and control boards whose parts list calls for a TIP29A
- Bench and hobby builds that need a screw-down transistor for loads under an amp
Frequently Asked Questions
How much load can the TIP29A handle?
1 A continuous collector current and 3 A peak, at up to 60 V collector to emitter. Dissipation is 30 W with the case held at 25 C, so anything past light duty wants a heatsink on the tab. Gain falls to 15 minimum at 1 A, so size the base drive for it.
Which lead is the base?
Pin 1 is the base, pin 2 the collector and pin 3 the emitter.
This TIP29A wears the logo of Harris Semiconductor, the division that became Intersil in 1999. Bolt it down wherever a logic line needs to move something heavier than itself.
