Product Overview
Quarter-Turn Unidirectional Fluid Control Valve for 1/4 Inch Tubing
Condition
Used condition with surface scuffs and scratches on the stainless steel body and handle. Both 1/4-inch male fitting stubs have clean threads and intact sealing surfaces; compression nuts and ferrules are not included. Evaluation: Visual inspection only. Function testing not performed. Photos show the specific unit you will receive.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

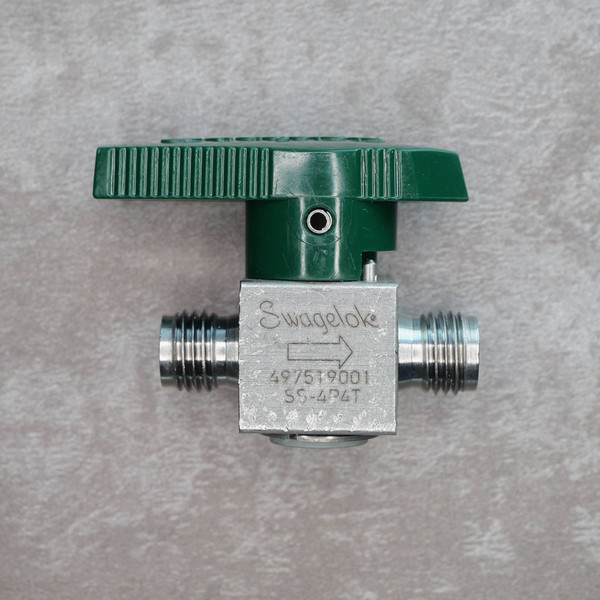

This Swagelok P4T series plug valve provides quick manual shutoff and throttling for liquid and gas sampling lines, test benches, and fluid transfer systems. Built with a 316 stainless steel body and a unidirectional straight flow pattern, it operates up to 3000 psig. Actuation is handled by a quarter-turn green nylon pointer handle that clearly indicates open and closed status.
Key Features
- 316 stainless steel valve body construction with laser-etched directional flow indicator
- 1/4-inch Swagelok fractional tube fitting end connections (bare threaded stubs)
- Rated for working pressures up to 3000 psig (206 bar)
- 0.172-inch (4.4 mm) orifice diameter delivering a 1.6 Cv flow coefficient
- Quarter-turn manual operation with green directional pointer handle
- Unidirectional straight-through 2-way flow design
Applications
- Isolating pressure gauges or sampling ports during routine calibration rounds
- Plumbing liquid cooling loops or pneumatic air lines in custom shop machinery
- Building high-pressure fluid manifolds and test rigs in maker workshops or home laboratories
- Controlling flow direction and shutoff across chemical transfer or gas delivery lines
Frequently Asked Questions
Are the compression nuts and ferrules included with this valve?
Not included. The valve is supplied as the bare body with threaded 1/4-inch stubs, requiring standard Swagelok 1/4-inch nuts and front and back ferrules for tubing installation.
What does the arrow on the valve body indicate?
The etched arrow indicates the required fluid flow direction. P4T series plug valves are unidirectional and designed to seal against forward flow pressure.
Why buy this individual Swagelok valve instead of a surplus bulk lot?
You get the exact unit documented here with verified markings, intact threads, and honest condition notes, rather than gambling on an unsorted lot of unknown pull-offs. Orders leave our Idaho warehouse the same or next business day.
Nothing beats the positive, tactile thunk of a quarter-turn plug valve when you need clean flow shutoff right now. Drop this into your line, tighten down your fittings, and take full control of your process.
