Sprague 513D Aluminum Electrolytic Capacitor - 1000uF 35V, Radial Leads
Condition
Unused, new old stock. The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The 513D was Sprague's US-made 85 degree C radial aluminum electrolytic line, and it is long obsolete (per published distributor data on the series). This can wears an orange sleeve printed SPRAGUE, with 35v1000uF repeating around it in the maker's own micro symbol, 513D in black below the dark band, and the plain end carries a cross-scored vent disc set flush in the aluminum. There are 421 on the shelf and they sell one at a time.
Key Features
- Capacitance: 1000 uF, printed on the sleeve as 1000uF
- Voltage: 35 V, printed on the sleeve as 35v
- Series: Sprague 513D, radial-lead aluminum electrolytic, US-made (per published 513D distributor data)
- Temperature: 85 degrees C rating, the only temperature figure published for the series
- Tolerance: the published 513D part-number form uses an M suffix for plus or minus 20 percent. A short extra string is printed on this sleeve near the vented end and is only partly legible in these photos, so no tolerance figure is claimed for this unit

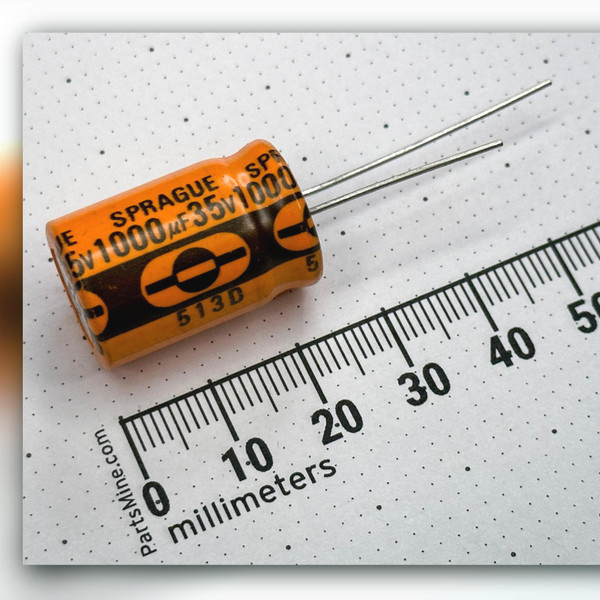

- Package: cylindrical aluminum can in an orange sleeve with a black band, roughly 16 mm across and about 25 mm long estimated against the millimeter rule in the photos, so treat both figures as approximate
- Leads: two straight radial leads out of one end, roughly 30 mm of lead beyond the can as photographed
- Vent: cross-scored disc set into the plain end, visible in the photos
- The 513D series is obsolete and no 513D datasheet is in Vishay's current document library, so verify against Vishay Sprague's published 515D series data before designing in.
Applications
- Main filter position in recapped audio and radio power supplies
- Bulk energy storage on 35 V and lower DC rails
- Reservoir capacitor in linear bench supplies
- Repair stock for vintage industrial and test equipment boards
Frequently Asked Questions
How many should I order? Order the count the build needs, not a guess. With 421 on the shelf you can take four for one chassis or a hundred for a service run without us running short mid-order. Shipping is $8 flat rate and free on orders over $28, so small parts like this ship smartest as part of a larger order.
How much board room does this one want? Estimated against the millimeter rule photographed with the part, the can runs roughly 16 mm across and about 25 mm long, with about 30 mm of lead beyond the can. Those are rule estimates off a photographed piece rather than published dimensions, so check them against your hole spacing and any can clamp before you order a stack.
A thousand microfarads in an orange sleeve, unsoldered, with 420 more behind it.
