Panasonic EEU-FS0J182L Aluminum Electrolytic Capacitor - 1800 uF, 6.3 V
Condition
New, unused. The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

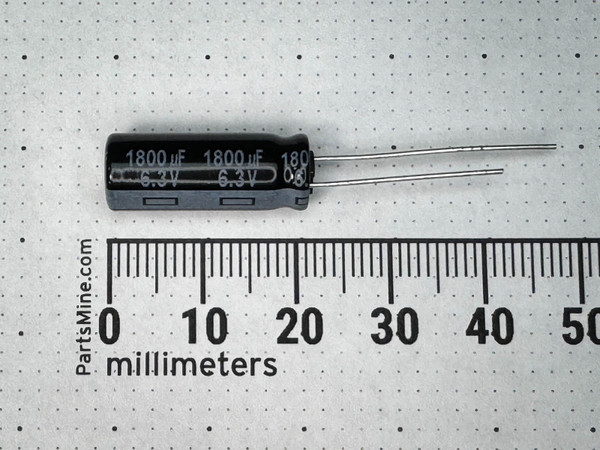

A black-sleeved radial aluminum electrolytic can, printed 1800 uF over 6.3V twice across the face shown with a third repeat wrapping out of view, and a polarity stripe down the negative side. Against the millimetre ruler in frame the can is about 22 mm long overall, and there is no Panasonic name, series letter, date code or part number anywhere on the sleeve. Low-voltage, high-capacitance parts in this size are the standard output-side bulk capacitor in switching supplies and logic rails.
Key Features
- Capacitance 1800 uF and 6.3 V DC, both printed on the sleeve; note the code 182 in the part number reads on a MICROfarad base, 18 x 100 uF
- Tolerance +/- 20 percent (published EEU-FS0J182L data, distributor listings)
- Ripple current 1.56 A and ESR 0.03 ohm (published EEU-FS0J182L data)
- Load life 9000 hours at 105 C, operating range -40 to +105 C (published EEU-FS0J182L data)
- Panasonic FS series, a radial-lead low-ESR long-life aluminum electrolytic line (per Panasonic's published FS series page)
- Case diameter 8 mm (published data), matching the can against the millimetre ruler in frame; overall body length measures about 22 mm against that same ruler
- Radial leads, through-hole; polarity stripe printed on the sleeve
- Verify against Panasonic's published FS series data before designing in.
Applications
- Output-side bulk filtering on low-voltage switching supplies
- Logic and CPU rail decoupling where low ESR is wanted
- Recapping motherboards and consumer boards that used 6.3 V bulk parts
- Audio and instrument power rails needing a long-life 105 C part
Frequently Asked Questions
How many should I order? Order the count the board needs; 14 are on the shelf here, so a full recap of a board that uses several of them is worth ordering in one go rather than in pieces. Shipping is $8 flat rate and free on orders over $28, so small parts like this ship smartest as part of a larger order.
What is actually printed on the part? Only 1800 uF and 6.3V, repeated around the sleeve, plus the polarity stripe. The Panasonic name, the FS series and the ripple, ESR and life figures above come from published catalogue data for the recorded part number EEU-FS0J182L, not from anything on the sleeve and not from any measurement of ours.
Twenty-two millimetres of black sleeve that prints the same two numbers three times around, in case you miss one.
