Panasonic ECUV1H331KBM - 330 pF 50 V Ceramic Multilayer Capacitor, 1206
Condition
New. The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

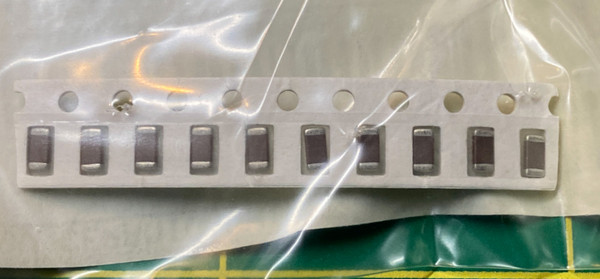

Panasonic's ECU-V is a general usage surface mount ceramic family that published parts data lists as obsolete. What is here is one cut strip of white carrier tape with exactly ten pockets filled, lying inside a clear bag and photographed flat on a green cutting mat, so the single frame on this listing holds the entire shelf count. The bodies read dark plum brown with silver end terminations and carry no printed value; the 1206 case size and X7R characteristic come from this listing's own catalog data, not from the camera.
Key Features
- Capacitance: 330 pF, also written 0.00033 uF, per this listing's own catalog data
- Voltage: 50 V DC (1H voltage code, per Panasonic's ECU series catalog)
- Tolerance: +/-10% (K code, per Panasonic's ECU series catalog)
- Temperature characteristic: X7R, per this listing's own catalog data and the B code in the part number
- Case size: 1206, per this listing's own catalog data
- Mounting: surface mount, two terminals, reflow, per published ECU series data
- Operating range: -55 to +125 degC, per published ECU series data for this family
- Series: Panasonic (Matsushita) ECU-V general usage multilayer ceramic chip capacitor
- Verify against Panasonic's published ECU series data before designing in.
Applications
- Filter networks and frequency shaping stages
- Coupling between low level analog stages
- Timing and pulse shaping circuits
- Repair of legacy 1206 surface mount assemblies
Frequently Asked Questions
How many should I order?
Ten is the count, and the frame here shows that strip with all ten pockets filled, so what you are looking at is the whole holding rather than a sample cut off a reel. Order the exact number the board calls for and add one for the bench, since a 1206 chip that skips off the tweezers rarely comes back. Ten chip ceramics is a light order by itself. Shipping is $8 flat rate and free on orders over $28, so small parts like this ship smartest as part of a larger order.
What footprint do I lay out for this one?
This listing's own catalog data gives the case size as 1206, so a standard 1206 chip pad pair is the target. Nothing on the bodies in these photos states a size, and case size is not published for every part number in this ECU-V family, so check any sibling value on its own before reusing the same footprint.
A 1206 pad set is a friendly target for a fine tip and a steady hand.
