Panasonic ECUV1H270JCM - 27 pF 50 V Multilayer Ceramic Chip Capacitor
Condition
New. The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

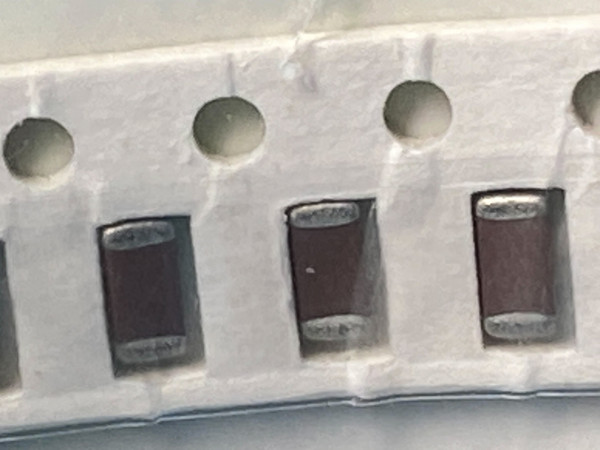

The ECU-V series is Panasonic's general usage multilayer ceramic chip line, which published parts data lists as obsolete. In the close frame the tape sits at a slight tilt with three pockets fully in view and the edge of a fourth, sprocket holes above them running large in the macro, dark maroon bodies, and one termination throwing a hard highlight back at the camera. The wider frame lays the strip diagonally across a clear bag on a green cutting mat, about ten filled pockets in the picture with the tape running off both edges, so that frame is a representative one and the shelf count rather than the frame is the number that ships; there is printed lettering showing through the bag film that is too soft to read here, so we will not guess at it. Ten is the count on the shelf for this part number, and they sell one at a time.
Key Features
- Capacitance: 27 pF, from this listing's own name and the 270 capacitance code
- Voltage: 50 V DC (1H voltage code, per Panasonic's published ECU series data)
- Tolerance: +/-5% (J code, per Panasonic's published ECU series data), a band of 25.65 pF to 28.35 pF
- Temperature characteristic: C0G, 0 +/-30 ppm/degC (C code, per the same published data)
- Package: surface mount chip, two terminals, reflow, per published ECU series data
- Operating temperature: -55 degC to +125 degC, per published ECU series data for this family
- Series: Panasonic (Matsushita) ECU-V general usage multilayer ceramic chip capacitor, lifecycle listed obsolete in published parts data
- Case size is not confirmed in published data for this part number, and the trailing M has no published meaning, so we state neither
- Verify against Panasonic's published ECU series data before designing in.
Applications
- Crystal load capacitance for microcontroller oscillators
- RF tuning and matching networks
- Small coupling values in tuned circuits
- Board repair where a stable small value is called for
Frequently Asked Questions
How many should I order?
Order the count the job needs. Ten of this part number are on the shelf, sold one at a time and not in a fixed pack, so a pair of load capacitors plus spares comes out of a single order. Shipping is $8 flat rate and free on orders over $28, so small parts like this ship smartest as part of a larger order.
Is this a 1206 part?
We do not know, and published data will not let us say. The ECU-V series spans case sizes: published parts data gives 1206, 3.2 x 1.6 mm, for ECUV1H102JCH and 0603 for ECU-V1H102KBV, and nothing published maps the trailing letter in this part number to a case size. So we state no package size here rather than guess one from a photo of tape. If footprint matters, measure a piece before you commit a board to it. What the part number does establish, per Panasonic's published ECU series data, is 27 pF, 50 V DC, +/-5% and a C0G characteristic, and what ships is the chip itself, sold each.
Twenty-seven picofarads with an honest gap where the case size should be, which beats a confident guess.
