Panasonic ECUVH100DCM - 10 pF 50 V Multilayer Ceramic Chip Capacitor
Condition
New. The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

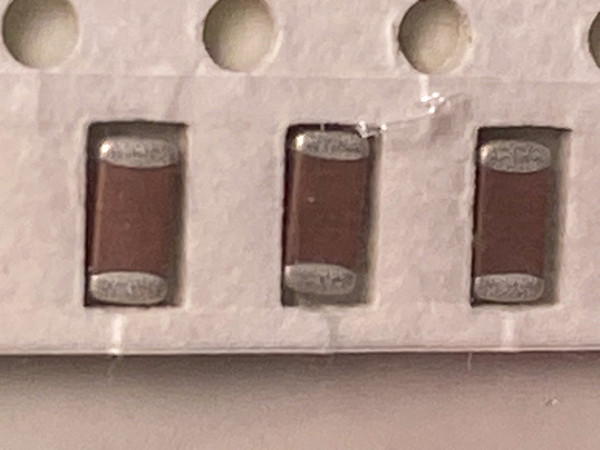

Published parts data lists Panasonic's ECU-V as an obsolete general usage surface mount ceramic family. These ten are on white paper carrier tape with the sprocket holes above the pockets, photographed inside a clear bag; a thread of that film shows caught over a sprocket hole in the close frame and lying across one chip in the wider one. The bodies read a medium rose brown with silver end terminations and carry no printed value. Eight pockets fall inside the wider frame, and ten is the shelf count for this value.
Key Features
- Capacitance: 10 pF, from this listing's own name and the 100 code in the part number
- Voltage: 50 V DC, from this listing's own name and title
- Tolerance: +/-0.5 pF (D code, per Panasonic's ECU series catalog)
- Temperature characteristic: C0G, 0 +/-30 ppm/degC (C code, per the same catalog)
- Mounting: surface mount, two terminals, reflow, per published ECU series data
- Operating range: -55 to +125 degC, per published ECU series data for this family
- Series: Panasonic (Matsushita) ECU-V general usage multilayer ceramic chip capacitor
- Case size is not confirmed in published data for this part number, so we do not state one
- Verify against Panasonic's published ECU series data before designing in.
Applications
- Crystal load capacitors either side of an oscillator
- Compensation and feedback in high speed amplifier stages
- RF tuning and coupling
- Stocking a common small value for repair work
Frequently Asked Questions
How many should I order?
Ten picofarads is worth buying a few of even when the job needs one, since it is the small value you reach for most often. Ten pieces is the whole holding here, so a modest bench stash and one repair will just about split it. Ten chip ceramics is a light order on its own. Shipping is $8 flat rate and free on orders over $28, so small parts like this ship smartest as part of a larger order.
Is the tolerance tight enough for tuning work?
Per Panasonic's ECU series catalog, D is the +/-0.5 pF tolerance code and the C that follows is the C0G temperature characteristic at 0 +/-30 ppm/degC. On a 10 pF part that is a five percent window with a stable temperature curve behind it. None of it is printed on the bodies in these photos, so the tape is the only label these carry.
