Product Overview
Panasonic ECUV1H3RCCM - 3.3 pF 50 V Multilayer Ceramic Chip Capacitor
Condition
New. The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

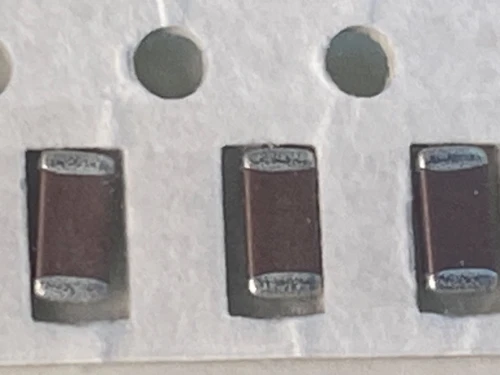

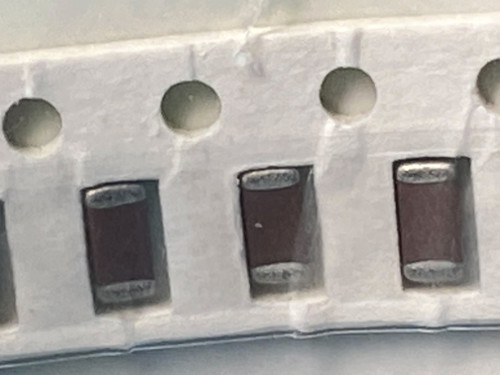

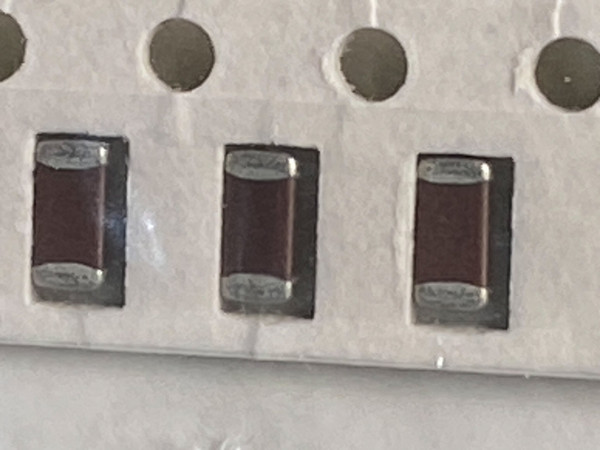

Panasonic's ECU-V is a general usage surface mount ceramic family that published parts data lists as obsolete. The close frame here is sharp enough to show three bodies in deep maroon with silver end terminations sitting in dark pocket walls, and nothing printed on the ceramic. The wider frame has the strip inside a clear bag with a small blister in the film, laid over a green cutting mat with the yellow grid showing at opposite corners, and the run passes off the right edge. Ten is the shelf count for this value.
Key Features
- Capacitance: 3.3 pF, from this listing's own name
- Voltage: 50 V DC (1H voltage code, per Panasonic's ECU series catalog)
- Mounting: surface mount, two terminals, reflow, per published ECU series data
- Operating range: -55 to +125 degC, per published ECU series data for this family
- Series: Panasonic (Matsushita) ECU-V general usage multilayer ceramic chip capacitor
- Case size is not confirmed in published data for this part number, so we do not state one
- Verify against Panasonic's published ECU series data before designing in.
Applications
- Crystal and oscillator load setting
- RF matching and trimming networks
- High frequency coupling between stages
- Bench spare for repair of small value chip positions
Frequently Asked Questions
How many should I order?
Order what the circuit calls for and one spare, because a 3.3 pF chip that goes missing mid-repair stops the whole job. Ten pieces is the entire holding, and these photos show one bagged strip rather than a reel, so buy for the finished build. Ten of them together is a light order. Shipping is $8 flat rate and free on orders over $28, so small parts like this ship smartest as part of a larger order.
What case size is this one?
Published data does not confirm a case size for this part number, so we do not state one, and nothing on the bodies in these photos gives a size either. Panasonic's ECU series covers more than one chip size, so measure a piece or check Panasonic's catalog against your footprint before committing a board.
3.3 pF is a small number, and a whole repair can sit waiting on it.
