Panasonic ECUV1H223KBM - 22000 pF 50 V Multilayer Ceramic Chip Capacitor
Condition
New. The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

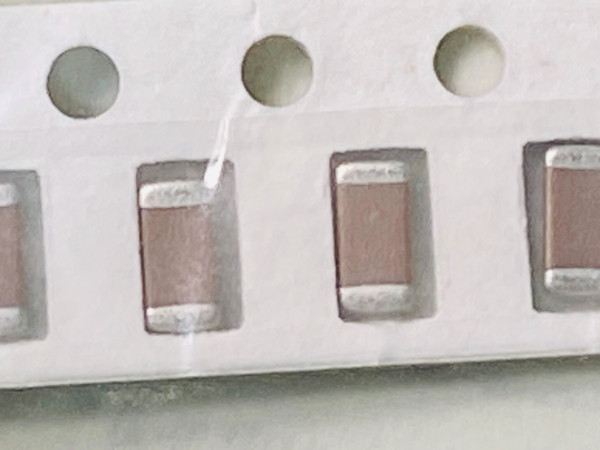

The ECU-V series is Panasonic's general usage multilayer ceramic chip line, recorded as obsolete in published parts data. The close frame catches two full pockets and the edges of two more, sprocket holes along the top, medium brown bodies with bright silver end caps, and a crease in the bag film standing up across one of them. The wider frame lays the strip inside a clear bag on a green cutting mat with yellow grid lines: eight pockets fall in the picture, all filled, and the tape carries on past the right edge rather than ending there. Ten is the shelf count for this part number, and they sell one at a time.
Key Features
- Capacitance: 22000 pF, also written 0.022 uF or 22 nF, from this listing's own name and the 223 capacitance code
- Voltage: 50 V DC (1H voltage code, per Panasonic's published ECU series data)
- Tolerance: +/-10% (K code, per Panasonic's published ECU series data)
- Temperature characteristic: X7R (B code, per the same published data)
- Package: surface mount chip, two terminals, reflow, per published ECU series data
- Operating temperature: -55 degC to +125 degC, per published ECU series data for this family
- Series: Panasonic (Matsushita) ECU-V general usage multilayer ceramic chip capacitor, classed in published parts data as obsolete and RoHS non-compliant
- Case size is not confirmed in published data for this part number, and the trailing M is not covered by any published table, so we state neither
- Verify against Panasonic's published ECU series data before designing in.
