Panasonic ECUV1H273KBW - 27000 pF 50 V Multilayer Ceramic Chip Capacitor
Condition
New. The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

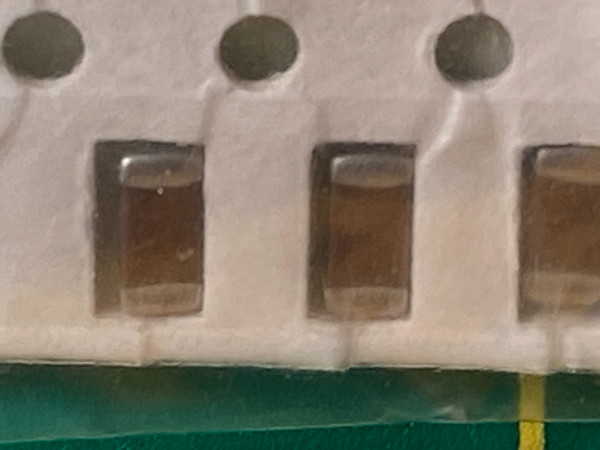

Published parts data lists Panasonic's ECU-V as an obsolete general usage surface mount ceramic family. In these photos the strip lies inside a clear bag over a green cutting mat with a yellow grid crossing under it, and the bodies read a glossy amber brown through the film with silver end terminations and no printed value. There is printed lettering on the bag above the strip, but it is out of focus in these photos, so we will not guess at what it says. Eight pockets fall inside the wider frame, and ten is the shelf count for this value.
Key Features
- Capacitance: 27000 pF, also written 0.027 uF, from this listing's own name
- Voltage: 50 V DC (1H voltage code, per Panasonic's ECU series catalog)
- Tolerance: +/-10% (K code, per Panasonic's ECU series catalog)
- Temperature characteristic: X7R (B code, per the same catalog)
- Mounting: surface mount, two terminals, reflow, per published ECU series data
- Operating range: -55 to +125 degC, per published ECU series data for this family
- Series: Panasonic (Matsushita) ECU-V general usage multilayer ceramic chip capacitor
- Case size is not confirmed in published data for this part number, so we do not state one
- Verify against Panasonic's published ECU series data before designing in.
Applications
- Timing and ramp generation circuits
- Low pass filtering in control and audio paths
- Bulk decoupling on small signal supplies
- Non-standard value replacement during board repair
Frequently Asked Questions
How many should I order?
Odd values like 27000 pF are specified deliberately, so order the count the repair or build needs; a nearby standard value is not much help. Ten pieces is our whole holding, and the strip in these photos is it, so buy for the finished job rather than one board at a time. Ten of them together is a light order. Shipping is $8 flat rate and free on orders over $28, so small parts like this ship smartest as part of a larger order.
Are these still in production?
No. Published parts data lists Panasonic's ECU series as obsolete, so what circulates now is remaining stock, and the ten on this strip are what we hold of the value. That is a reason to buy the count a repair needs while the value is still findable.
0.027 uF in a family that stopped being made, which is exactly why it is worth keeping a few.
