Pomona 4786 Straight RF Cable Clamp Plug Hardware Assembly
Condition

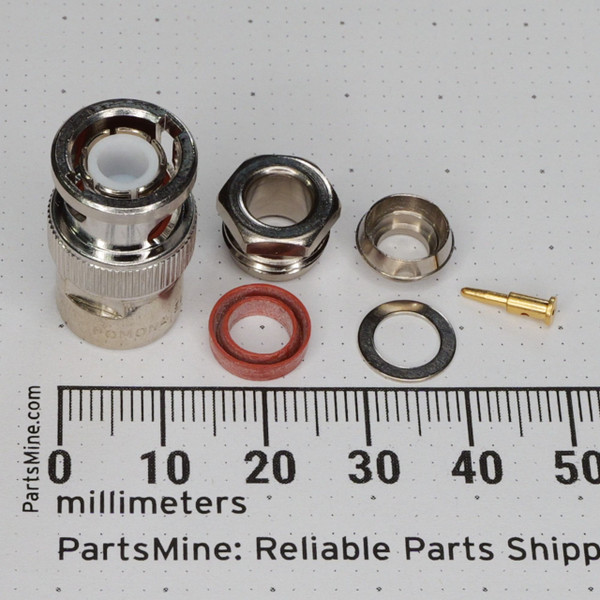

Unused new old stock (NOS). Complete assembly hardware includes the nickel-plated outer body stamped with POMONA, threaded rear clamp nut, tapered ferrule sleeve, flat metal washer, red silicone gasket, and gold-plated male center pin.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Pomona Electronics 4786 is a straight BNC male RF coaxial connector designed for terminating RG-59, RG-62, RG-71, and RG-210 cables. It features a mechanical braid clamp assembly and solder center contact for durable, field-serviceable terminations in video, RF, and instrumentation applications.
Key Features
- Connector interface: Straight BNC male plug with bayonet locking collar
- Cable compatibility: RG-59, RG-62, RG-71, RG-210
- Termination method: Mechanical cable clamp with solder center pin
- Body construction: Nickel-plated brass shell stamped POMONA
- Contact and insulation: Gold-plated brass pin with PTFE dielectric and silicone sealing gasket
- Assembly hardware: Outer body, clamp nut, tapered sleeve, washer, gasket, and pin included
Applications
- Building custom patch cables for composite video, CCTV, and baseband signal distribution.
- Assembling dedicated RF test leads for bench oscilloscopes, signal generators, and frequency counters.
- Repairing worn coaxial terminations on laboratory equipment and amateur radio setups.
Frequently Asked Questions
How is the coaxial cable secured in the Pomona 4786?
The cable shield braid clamps securely between the internal tapered ferrule and the rear hex clamp nut, while the center conductor solders directly into the gold-plated contact pin.
What coaxial cables can be terminated with this connector?
This connector is designed specifically for RG-59, RG-62, RG-71, and RG-210 coaxial cables.
Why buy individual Pomona 4786 connectors here instead of a surplus bulk lot?
Buying individual connectors lets you purchase the exact count needed for a repair or custom cable build without taking on mismatched lots or excess hardware. More pieces cost less each, and the price-break table on this page shows what each quantity costs. Orders ship for an $8 flat rate, ship free over $28, and go out the same or next business day from our Idaho warehouse.
A proper mechanical clamp connector turns a spool of bulk coax into a clean, custom bench lead that stays right where you plug it. Strip the jacket, solder the pin, and put that test gear back in service.
