Pomona 2447 50-Ohm BNC Male Panel-Mount Coaxial Plug
Condition

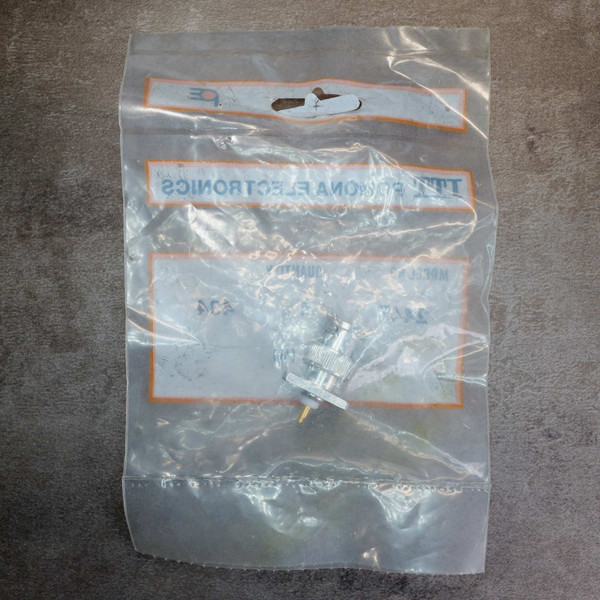

Unused new old stock (NOS). Markings legible: ITT POMONA ELECTRONICS MODEL NO. 2447 QUANTITY 1 BNC (M).
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Pomona 2447 provides a panel-mounted male BNC interface with a four-hole square flange for secure enclosure installation. Designed for 50-ohm coaxial systems, it features a gold-plated center pin, PTFE dielectric insulation, and a rear solder cup terminal.
Key Features
- Connector interface: BNC male (plug) with bayonet coupling mechanism
- Impedance: 50 ohms nominal
- Mounting configuration: 4-hole square flange panel mount with 0.531-inch center-to-center hole spacing
- Center contact termination: Rear solder cup
- Dielectric: PTFE (Teflon) insulator
- Construction: Nickel-plated brass shell with gold-plated brass center contact
- Voltage rating: 500 Vrms
Applications
- Bulkhead and panel RF terminations on custom enclosures, shielding boxes, and test fixtures
- Direct mating connections on homebrew radio gear, signal generators, and bench instrument panels
- Repair and maintenance of legacy lab instruments requiring chassis-mounted male BNC jacks
Frequently Asked Questions
What cable or wire attachment method does this BNC male plug use?
The center contact features a rear solder cup terminal for direct conductor attachment.
What mounting hole spacing does the 4-hole square flange require?
The four mounting holes are spaced 0.531 inches (13.49 mm) center-to-center in a square pattern.
A panel-mount male BNC is one of those uncommon RF fittings that solves an awkward enclosure layout in one clean move. Bolt it to the bulkhead, drop a wire into the solder cup, and your rig is ready for the bench.
