Product Overview
Vintage Trompeter Electronics Bayonet Cable Termination Hardware
Condition

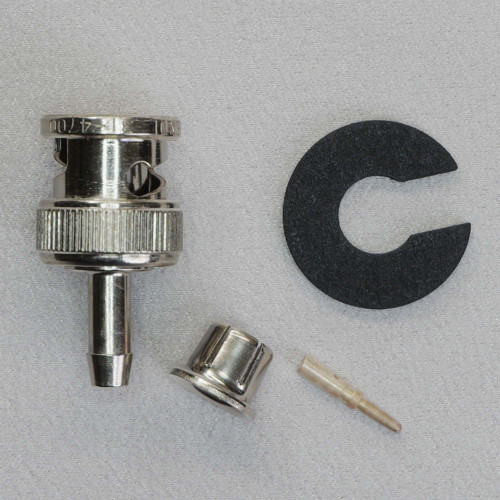

Unused new old stock (NOS). Stamped TROMPETER on connector sleeve and includes original factory PL 25 paper identification tag. Components are clean and unassembled. Sold individually.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Engineered for secure high-frequency signal connections, Trompeter PL25 connectors mate via a standard two-stud bayonet interface. Featuring a threaded compression hex clamp design, this connector allows solid field assembly without specialized crimp tooling.
Key Features
- BNC male interface with two-stud bayonet coupling mechanism
- Threaded rear hex clamp nut for field cable termination
- Gold-plated male center pin contact
- PTFE dielectric insulator sleeve and internal washer
- Heavy-duty metal body construction with nickel plating
- Internal elastomeric red sealing gasket for weather resistance
Applications
- Terminating coaxial cable runs in RF test benches, communications gear, and broadcast video systems.
- Building custom test leads, patch cables, and instrument interconnects at the workbench without a crimp tool.
- Restoring or servicing vintage electronics requiring period-correct Trompeter hardware.
Frequently Asked Questions
How does the cable jacket and shield secure into the connector?
The cable shield and outer jacket are clamped into place as the rear threaded hex nut tightens against the connector body, creating a tight mechanical and electrical ground bond.
How is the center contact pin attached to the conductor?
The gold-plated center pin solders directly onto the center conductor of the coaxial cable before being seated into the PTFE dielectric sleeve.
Before quick-crimp tools took over the shop, a threaded clamp connector and a soldering iron were all it took to build a bulletproof RF run. Put this vintage Trompeter hardware on your bench and finish the connection right.
