Product Overview
2.2nF 50VDC ±5% C0G NP0 Through-Hole MLCC - 5mm Lead Spacing
Condition

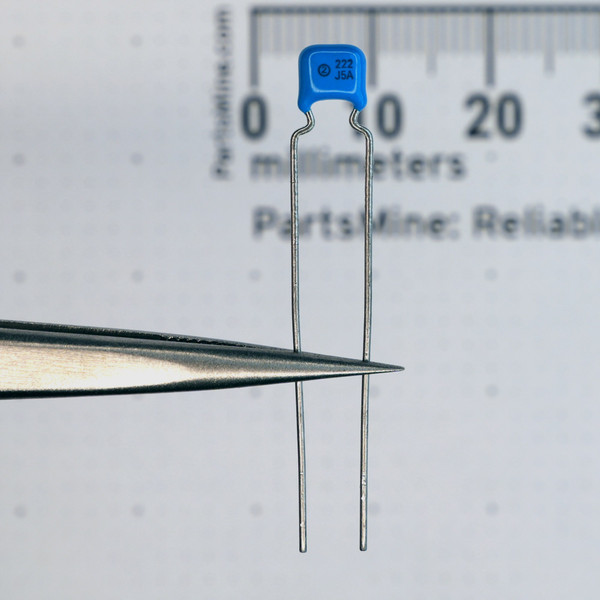

Straight through-hole wire leads with factory pre-formed offset crimp. Blue conformal coated body with crisp, legible markings: (2) 222 J5A.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
This 2200 pF (2.2 nF) radial multilayer ceramic capacitor delivers stable C0G (NP0) dielectric performance rated for 50 VDC operation. The conformal blue dipped coating protects the internal monolithic structure, while pre-formed radial leads simplify PCB through-hole placement and breadboard prototyping.
Key Features
- 2200 pF (2.2 nF / 0.0022 µF) capacitance rating
- 50 VDC maximum working voltage
- ±5% capacitance tolerance (J code)
- C0G / NP0 ultra-stable temperature-compensating dielectric
- -55°C to +125°C operating temperature range
- Formed radial wire leads with 5.0 mm nominal pitch
- Blue dipped moisture-resistant conformal coating
Applications
- RF filtering, timing networks, and precision oscillator circuits requiring zero capacitance drift across temperature changes
- Analog audio signal filtering and tone control stages where low distortion is critical
- Synthesizer building, guitar pedal modifications, and DIY Eurorack modules
- Through-hole prototyping on perfboard or solderless breadboards
- Board-level repair and maintenance on vintage instrumentation and legacy power equipment
Frequently Asked Questions
What do the body markings indicate?
The top line marking 222 designates a capacitance of 2200 pF (22 followed by 2 zeros). On the second line, J indicates ±5% tolerance, 5 designates a 50 VDC voltage rating, and A represents the C0G dielectric classification.
What is the lead spacing?
The leads feature a factory kink/crimp offset designed for standard 5.0 mm (0.2 inch) through-hole printed circuit board spacing.
Why buy individual counts instead of a bulk surplus lot?
Buying individual components lets you pick up the exact number of verified parts needed for a repair or build without storing unwanted excess. All orders ship same or next business day from our Idaho warehouse for a flat $8 rate, or ship free once your order reaches $28.
Stable dielectrics don't demand attention on the board, but when an analog filter or oscillator circuit needs absolute temperature stability, a solid C0G capacitor quietly holds the whole signal together.
