470pF 100V C0G Radial Leaded Ceramic Capacitor AVX SR151A471KAA NOS

AVX SkyCap 470 pF 100 VDC C0G 2.54 mm Lead Spacing Component

Condition

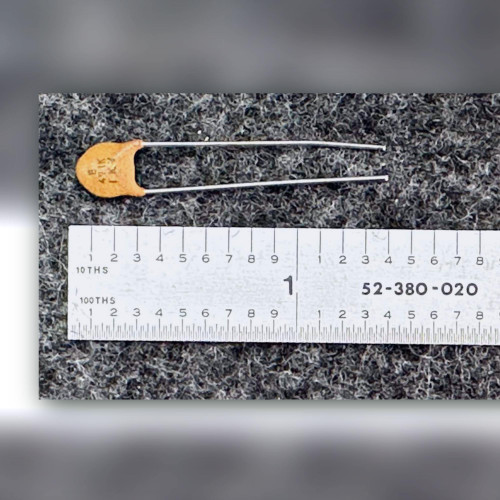

Unused new old stock (NOS). Leads are straight and untrimmed with clean factory finish. Protective yellow conformal coating is intact with legible printed markings.

Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.

We are here for our customers, with a no-hassle satisfaction guarantee.

Product Overview

The AVX SR151A471KAA is a radial-leaded multilayer ceramic capacitor from the SkyCap SR series, providing 470 pF of capacitance rated for 100 VDC. Built with an ultra-stable C0G (NP0) Class I dielectric, it delivers minimal capacitance shift across temperature, making it ideal for precision tuning, timing circuits, and audio filtering.

Key Features

• 470 pF (0.47 nF) capacitance value
• 100 VDC rated working voltage
• C0G / NP0 Class I dielectric with 0 ±30 ppm/°C temperature coefficient
• ±10% capacitance tolerance (K rating)
• Standard 2.54 mm (0.100 inch) lead spacing for direct breadboard and PCB fit
• Flame-retardant yellow epoxy conformal coating
• Body markings show 471 over A1K

Applications

• High-frequency RF filtering and bypass networks on prototype circuit boards
• Precision timing loops, analog synthesizer builds, and audio frequency tone shaping
• Legacy board repairs and instrument recalibrations requiring stable through-hole capacitors
• Pedal modifications and custom DIY electronics projects on standard 0.1-inch protoboards

Frequently Asked Questions

What do the face markings on this capacitor stand for?

The top line displays 471, the EIA value code for 470 pF. The lower line A1K identifies the specifications within the AVX code system: A denotes the C0G/NP0 dielectric, 1 indicates the 100 VDC voltage rating, and K specifies a ±10% capacitance tolerance.

What is the lead spacing?

The leads are set at a standard 2.54 mm (0.100 inch) spacing, designed to slide straight into standard perfboards, breadboards, and through-hole PCB footprints without bending.

Can I purchase the specific count needed for a repair or build?

Yes. You can order the exact count your build requires rather than buying fixed bulk assortments. Buying more pieces costs less each, and the price-break table on this page shows what each quantity costs. Shipping is an $8 flat rate, free once the order passes $28, and orders leave our Idaho warehouse the same or next business day.

Stable capacitance doesn't demand the spotlight; it just quietly keeps timing circuits on beat and noise off the rails. Solder it into place and let the board run steady.
