ASCO 8262G90VM 2-Way Normally Closed Vacuum Valve 1/4 NPT
Condition

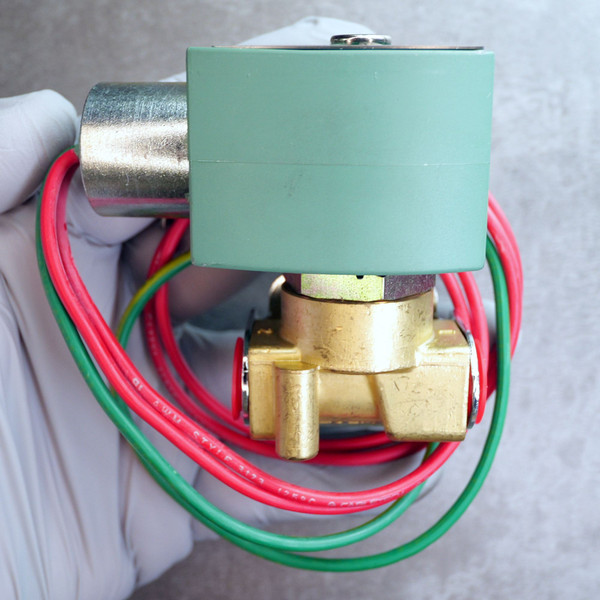

Unused new old stock (NOS). Brass body retains clean factory finish with red protective port cap in place. Wire leads remain factory-coiled. Nameplate reads: ASCO Red-Hat II, VALVE CATALOG NO. 8262G90VM, REBUILD KIT NO. 302022, PIPE 1/4, CODE J1, VACUUM 10-3 TORR, WATTS 6.1 HZ 60, WATTS 8.1 HZ 50, ENCL TYPES 2, 3, 3S, 4 & 4X, SERIAL NO. AFP92706.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Engineered for dedicated vacuum service down to 10-3 Torr, the ASCO 8262G90VM is a direct-acting, normally closed 2-way solenoid valve. Built with a forged brass body and 1/4-inch NPT threaded connections, this Red-Hat II assembly combines rapid direct actuation with a continuous-duty green epoxy coil rated for standard line frequencies in industrial vacuum automation and process control systems.
Key Features
- Direct-acting 2-way normally closed operation for positive shutoff
- Rated for vacuum service down to 10-3 Torr
- 1/4-inch NPT pipe connections in a rugged brass valve body
- Red-Hat II molded coil enclosure rated NEMA Types 2, 3, 3S, 4, and 4X
- Continuous duty electrical rating: 6.1 watts at 60 Hz, 8.1 watts at 50 Hz (Voltage Code J1)
- Integral 1/2-inch conduit hub with factory wire leads
- Serviced by ASCO rebuild kit number 302022
Applications
- Isolating roughing pumps and vacuum manifolds during automated chamber pump-down sequences.
- Operating vacuum hold-down tables and pick-and-place suction lines in light assembly machinery.
- Evacuating process lines and refrigeration circuits prior to charging or backfilling.
- Controlling vacuum degassing chambers and composite resin-infusion lines in builder workshops.
Frequently Asked Questions
What is the minimum operating pressure for this valve?
This is a direct-acting valve rated down to 10-3 Torr vacuum service. Because it operates by direct electromagnetic pull rather than line pilot pressure, it requires zero minimum operating pressure differential.
What operating voltage corresponds to ASCO Code J1?
ASCO voltage code J1 specifies standard 110-120V AC service at 50/60 Hz.
Is an instruction manual or mounting bracket included?
Not included.
How do the 8262G90VM and 260210-032D part numbers relate on this unit?
Catalog number 8262G90VM designates the complete 1/4-inch brass vacuum valve assembly, while 260210-032D identifies the installed Red-Hat II solenoid coil subassembly.
