Pomona 1829-0 Inline 4.22mm Female-to-Female Banana Jack Coupler
Condition

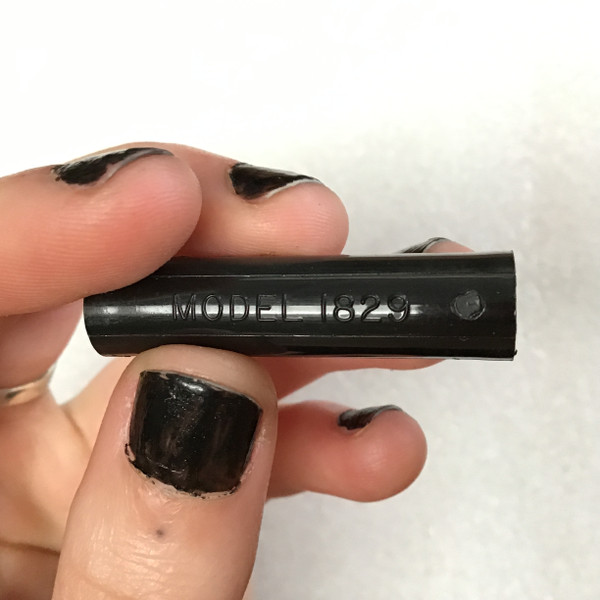

Unused new old stock (NOS). Molded body and internal contacts are clean and free of corrosion or damage. Markings legible: MODEL 1829. Sold each.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
A no-hassle satisfaction guarantee on every order.
Product Overview
Molded for inline test lead extension, Pomona 1829-0 couples two standard banana plug patch cords end-to-end. Built with a black polypropylene insulating shell and internal nickel-plated brass contact sleeves, it provides a female-to-female junction rated for up to 5,000 VDC and 15 A.
Key Features
- Inline receptacle-to-receptacle connection for standard 4.22 mm (0.166 in) banana plugs
- Rated for 5,000 VDC maximum voltage
- Continuous current rating of 15 A
- Nickel-plated brass internal contact sleeve
- Black molded polypropylene insulating body
- Overall length: 1.50 in (38.1 mm)
Applications
- Extending existing bench meter leads and oscilloscope ground clips across large workbenches
- Splicing modular test jumpers during multi-point diagnostic setups
- Field instrumentation testing where quick lead lengthening is required without desoldering
- Electronics bench prototyping and high-voltage power supply monitoring connections
Frequently Asked Questions
What size banana plugs does this coupler accept?
It accepts standard 4.22 mm (0.166 in) male banana plugs at both ends.
What is the operating temperature range?
The maximum operating temperature rating is +55°C (+131°F).
Can this splice accommodate shrouded or safety banana plugs?
No. The barrel openings are sized for standard unshrouded banana plugs. Extended plastic safety collars or shrouded sleeves will not seat into the recessed contacts.
When a test lead comes up six inches short of the back panel, an inline splice turns two ordinary jumpers into the reach you need. Plug in on both ends and get back to troubleshooting.
