Granville-Phillips Process Control Relay Mating Connector Kit 009275
Condition

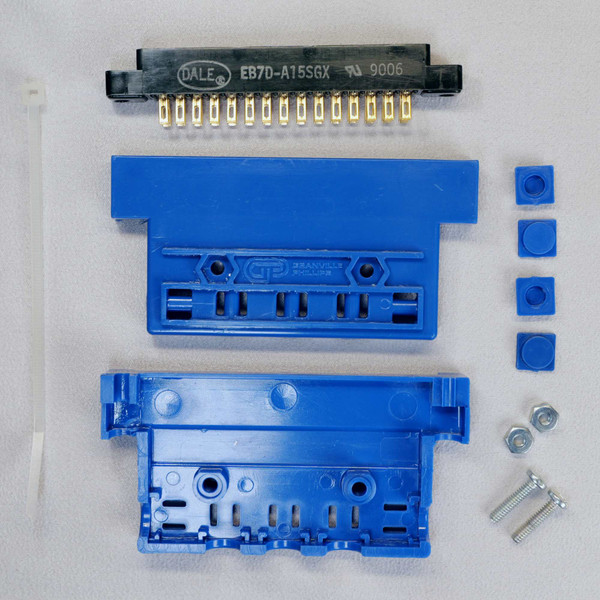

New old stock (NOS). Unassembled mating connector kit includes one 30-contact Dale card edge connector, two-piece blue backshell with embossed Granville-Phillips logo, four snap plugs, mounting hardware, and cable tie. Markings legible: (DALE) EB7D-A15SGX 9006.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
This legacy connector assembly kit mates directly with the rear process control relay interface on Granville-Phillips Series 307, 350, and 370 vacuum gauge controllers. Built around a Dale EB7D-A15SGX edgeboard connector housed inside a signature blue Granville-Phillips clamshell backshell, the assembly provides secure wire-to-board interconnects for process automation and relay switching lines.
Key Features
- 30 total contacts configured in 2 rows of 15 positions with dual readout
- Standard 0.156 in (3.96 mm) contact pitch with 0.140 in row spacing
- Gold-plated solder eyelet terminals for secure point-to-point wiring
- Two-piece blue clamshell backshell embossed with Granville-Phillips branding
- Includes four snap-in blue hole plugs, two assembly machine screws, two hex nuts, and one nylon cable tie
- 5 A current rating with an operating temperature range of -55°C to +125°C
Applications
- Wiring auxiliary process control setpoint relays on Series 307 vacuum gauge controllers
- Fabricating replacement interface cables during high-vacuum system maintenance
- Restoring or bench-testing legacy Granville-Phillips process controllers and instrumentation racks
Frequently Asked Questions
What controllers does this connector kit fit?
This kit mates with the rear-panel process control board card edge on Granville-Phillips Series 307, 350, and 370 vacuum gauge controllers.
What type of wire termination does the connector use?
The Dale EB7D-A15SGX connector features gold-plated solder eyelet terminals designed for direct soldered wire connections.
Does this kit correspond to Granville-Phillips OEM part number 009275?
Yes. This complete kit matches the Granville-Phillips catalog number 009275 mating connector assembly specifications for process control interfaces.
Granville-Phillips blue backshells have anchored vacuum process monitoring across decades of cleanroom and physics lab service. Assemble your harness clean, fasten the clamshell, and put the controller back to work.
