Vector R644-3 44-Pin 0.156 Inch Receptacle for 0.062 Boards
Condition

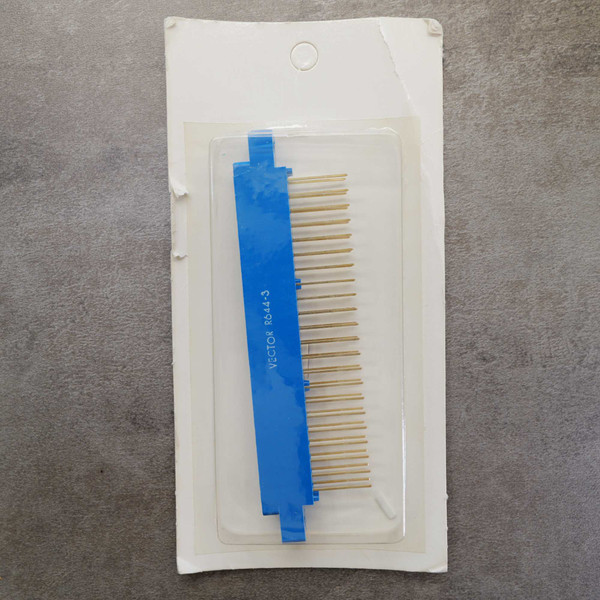

Unused new old stock. Markings legible: VECTOR R644-3. Terminal posts are straight and gold-plated contacts show no insertion wear. Sold each.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Vector R644-3 is a 44-contact dual-row card edge connector built for wire-wrap prototyping and legacy backplane assemblies. Featuring 22 contact positions per side on 0.156-inch centers, this flanged receptacle accepts standard 0.062-inch thick printed circuit boards and Vectorbord prototype cards.
Key Features
- 44 dual-row contacts spaced on 0.156 in (3.96 mm) centers
- Long square posts formatted for point-to-point wire-wrap termination
- Molded mounting flanges with holes for chassis or card cage installation
- Gold-plated contacts for low contact resistance and corrosion protection
- Engineered to mate with standard 0.062 in (1.57 mm) thick circuit cards
- Durable blue molded insulator housing
Applications
- Wire-wrapping prototype backplanes and custom digital sub-assemblies
- Servicing legacy industrial bus systems, test fixtures, and vintage computers
- Building modular synth racks or custom breakout boards using 0.156-inch pitch cards
Frequently Asked Questions
What circuit board thickness does this connector accept?
It is designed to mate with standard 1/16-inch (0.062 in or 1.57 mm) thick printed circuit boards.
What is the pin spacing and total contact count?
The connector features 44 total contacts arranged in two parallel rows of 22 contacts on 0.156-inch (3.96 mm) center-to-center spacing.
Can this connector be secured directly to a chassis panel?
Yes. The integral mounting flanges on both ends include pre-formed holes for hardware mounting directly to a card cage, chassis plate, or rack frame.
Wire-wrapping might be a lost art to some, but nothing beats the reliability of a solid point-to-point backplane when keeping classic hardware running. Slot your card, spin your posts, and make the connection count.
