Sprague 10TCC-Q20 Ceramic Disc Capacitor - 20 pF, 1 kV, NPO
Condition
New. The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

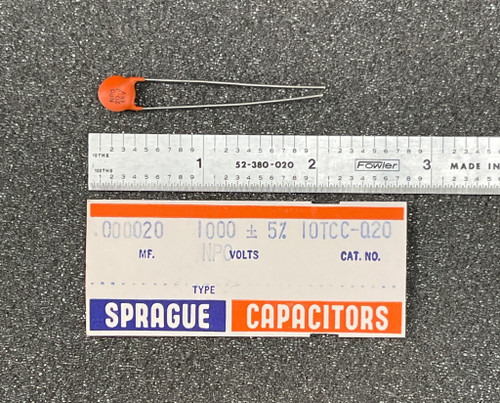

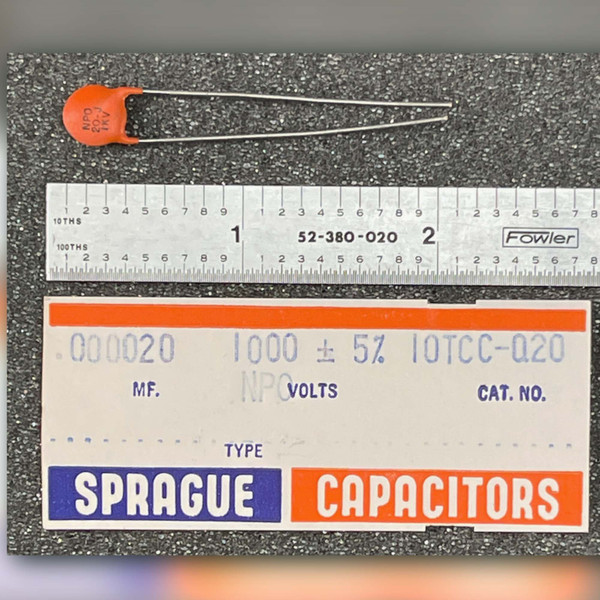

Sprague's 10TC was a 1 kV ceramic disc line, and this part still has its own paperwork with it: a small orange disc stamped NPO / 20-J / 1KV, photographed beside a Sprague carton label reading .000020 MF, 1000 VOLTS, plus or minus 5%, CAT. NO. 10TCC-Q20, TYPE NPO. That photographed label is what sets the value at 20 pF and corrects the 20 MF that had been riding on the old name. Seven on the shelf, sold each; what ships is the capacitor, not the label.
Key Features
- Capacitance: 20 pF, from the carton label reading .000020 MF photographed with this part; the body is stamped 20-J
- Voltage: 1 kV, marked 1KV on the body and 1000 VOLTS on that carton label
- Tolerance: plus or minus 5 percent, printed on the carton label shown
- Temperature coefficient: NPO, marked on the body and on the label (EIA Class 1, nominally 0 parts per million per degree C, per Vishay's published TC code data)
- Catalog number: 10TCC-Q20, printed on the Sprague carton label shown
- Marking string, verbatim from the body: NPO, 20-J, 1KV
- Package: orange-coated ceramic disc, roughly a quarter to five sixteenths of an inch across estimated against the rule in the photos, so treat that figure as approximate
- Leads: two radial leads from one edge, long and untrimmed as photographed
- No Sprague 10TC datasheet or catalog page was located, so verify against Vishay's published Class 1 ceramic data before designing in.
