Motorola MBR1060 Schottky Barrier Rectifier, 10A 60V, TO-220AC
Condition
The photo shows a representative unit from our stock of 296. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

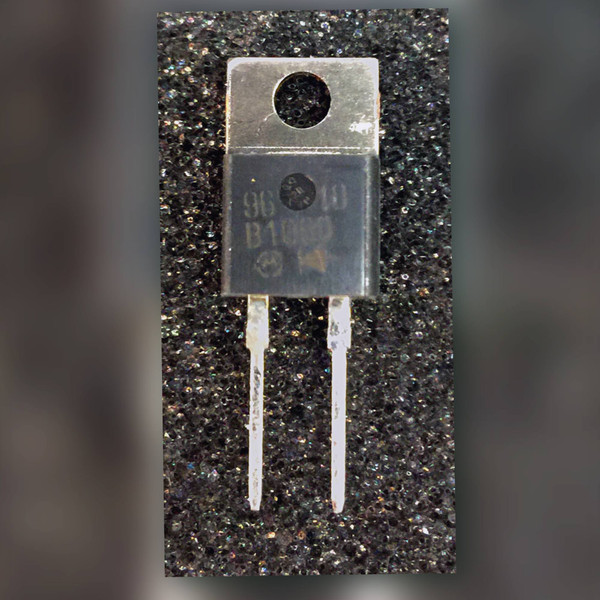

The photographed unit is a two-lead TO-220AC rectifier with a dark grey molded body on a metal tab with a mounting hole, a circular maker's logo at the lower left, and the device marking B1060 across the face. B1060 is onsemi's published device marking code for the MBR1060, which is why this stock is now listed as MBR1060 rather than under the M1060 string it carried for years; M1060 returns no manufacturer or distributor catalogue entry we could find. MBR1060 is an industry-standard 10 A 60 V Schottky that Motorola's discrete line carried into onsemi and that several makers still second-source today.
Key Features
- Average rectified forward current IF(AV) 10 A, per onsemi's published MBR1060 data
- Peak repetitive reverse voltage VRRM 60 V, per onsemi's published MBR1060 data
- Maximum instantaneous forward voltage 0.8 V at 10 A and 25 degC case, 0.7 V at 10 A and 125 degC case, per onsemi's published MBR1060 data
- Operating junction temperature range -65 to +175 degC, per onsemi's published MBR1060 data; other makers of this industry-standard number publish a lower figure, so check the maker you are designing against
- Package TO-220AC, case 221B, two-lead plastic molded epoxy, per onsemi's published MBR1060 data
- Device marking code B1060, per onsemi's published MBR1060 marking diagram, and the string carried on the photographed body
- Verify against onsemi's published MBR1060 data before designing in.
Applications
- Output rectification in switching power supplies
- Freewheeling and clamp duty in low-voltage DC-DC converters
- Reverse-polarity and OR-ing blocking on a low-voltage rail
- Repair and drop-in replacement of 10 A 60 V Schottky positions on older boards
Frequently Asked Questions
How many should I order? Order the count your build needs and a spare or two for the bench, since a rectifier in the output leg is the part that takes the abuse. We have 296 on the shelf, sold each, so a full board set or a handful of spares both come out of the same bin. Shipping is $8 flat rate and free on orders over $28, so small parts like this ship smartest as part of a larger order.
The body says B1060, not MBR1060. Did I get the right part? Yes. B1060 is the device marking code onsemi publishes for the MBR1060. This listing was sold for years as M1060, which is a misread of that same body marking and is not a catalogue number we could find at any maker, so the number in the title has been corrected to MBR1060 and M1060 is kept only as a search alias. Above the B1060 line the photographed unit carries a second stamped code line that is partly hidden by the mold dimple and not fully legible in these photos; we do not decode it and it is not a date claim.
The number on the page changed, the part in the bin did not - it is the same 10 amp Schottky it has always been, just finally filed under the number onsemi publishes for it.
