Product Overview
Calorimetric Thermal Dispersion Probe with 50.5 mm Hygienic Clamp
Condition

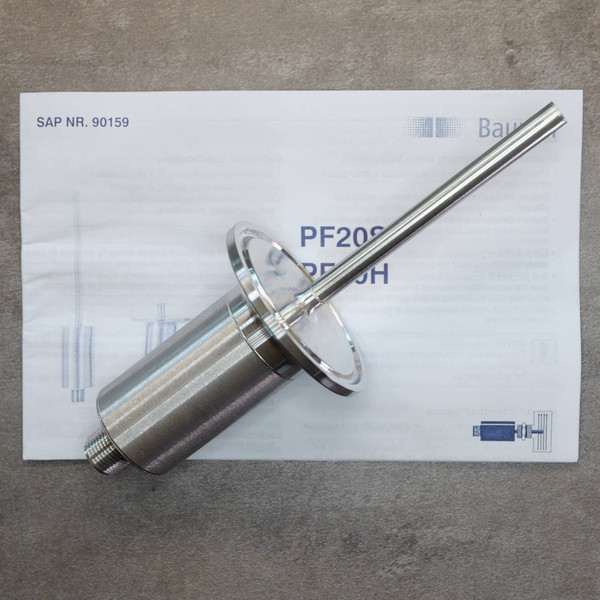

Unused new old stock (NOS). Includes printed manufacturer instruction sheet SAP NR. 90159. Body etching reads: Baumer FlexFlow PF20H-11.010.C042.20.0.0000.0, 11199380, UB 12-32 V DC, Out: 4-20 mA.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Engineered for hygienic processing lines, the Baumer FlexFlow PF20H (article number 11199380) combines calorimetric flow and media temperature measurement into a single wetted insertion probe. It operates on a thermal dispersion principle without moving parts, monitoring liquid velocities up to 400 cm/s alongside process temperatures up to 150 °C. Built with AISI 316L stainless steel wetted surfaces and an integrated 50.5 mm sanitary clamp connection, it delivers an analog 4-20 mA signal over a standard M12 4-pin interface.
Key Features
- Thermal dispersion calorimetric measurement principle with no moving mechanical parts
- Flow velocity measurement range from 10 cm/s to 400 cm/s
- Process media temperature measurement range from -25 °C to +150 °C
- Analog 4-20 mA current output signal
- Operating supply voltage range of 12 VDC to 32 VDC
- AISI 316L stainless steel (1.4404) housing and wetted sensor probe
- Integrated 50.5 mm sanitary clamp fitting compatible with ISO 2852 and DIN 32676
- 75 mm immersion probe shaft length
- Standard M12 4-pin male electrical connection
- IP67 and IP69K ingress protection capability for washdown environments
Applications
- Monitoring CIP and SIP cleaning fluid flow and temperature cycles in sanitary process lines
- Verifying liquid velocity and pump run-dry protection in food, beverage, and dairy piping
- Tracking coolant loop flow and thermal transfer in pharmaceutical manufacturing skids
- Craft brewery and dairy processing automation setups measuring hot wort or milk transfer
Frequently Asked Questions
What process connection does this sensor use?
It features an integrated 50.5 mm diameter sanitary clamp flange (Baumer connection identifier C04), compatible with standard 1-1/2 inch Tri-Clamp, ISO 2852 DN 33.7/38, and DIN 32676-A DN 25/32/40 hygienic ferrules.
What is the immersion depth of the probe?
The insertion stem measures 75 mm from the hygienic clamp sealing face to the probe tip.
How does article number 11199380 match this model configuration?
Baumer article number 11199380 designates this exact configuration: model PF20H-11.010.C042.20.0.0000.0 with a 75 mm immersion probe, 50.5 mm hygienic clamp connection, 12 to 32 VDC supply, and 4 to 20 mA analog output.
No impellers to foul and no seals to weep, just solid 316L stainless steel reading the heat of the stream. Clamp it into the ferrule, wire the loop, and let the process run.
