Product Overview
Through-Hole Single Fast Recovery Rectifier 20A IFSM 300ns
Condition
Unused, New Old Stock (NOS). Visual inspection completed with no issues noted. Sourced through our trusted surplus and legacy channels.
Ships same business day. Hard-to-find parts since 1999. Fair prices, real help.
Product Overview

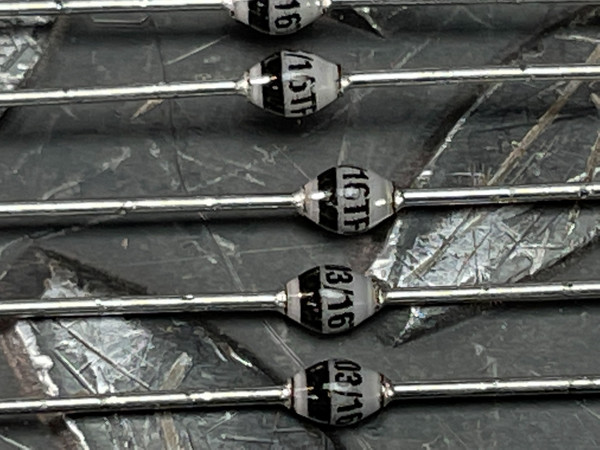

Vishay BY203-16STR is a fast recovery rectifier designed for high-voltage applications requiring controlled switching characteristics. Rated at 1600 volts with a forward current of 0.25 amp, this single-configuration through-hole diode is suited for power conversion and high-voltage rectification tasks.
With a maximum surge current of 20 amps (IFSM) and a specified recovery time of 300 nanoseconds, the BY203-16STR is appropriate for circuits where switching speed and surge handling are both important. Its through-hole mounting style supports traditional PCB layouts and repair of legacy equipment.
Key Features
- Part series: BY203-16STR
- Maximum repetitive voltage: 1600 V
- Forward current: 0.25 A
- Maximum surge current (IFSM): 20 A
- Fast recovery rectifier
- Recovery time: 300 ns
- Configuration: Single diode
- Mounting style: Through hole
Applications
- Switch-mode power supplies
- High-voltage rectification stages
- Flyback and snubber circuits
- Industrial control power sections
- Legacy power board repair
- General-purpose fast recovery diode replacement
- Laboratory high-voltage prototypes
Frequently Asked Questions
Is this a standard or fast recovery rectifier?
This is a fast recovery rectifier with a specified recovery time of 300 nanoseconds.
What is the maximum surge current?
The maximum surge current (IFSM) is 20 amps.
What mounting style does it use?
It is a through-hole device intended for traditional PCB installation.
Is this suitable for high-voltage applications?
Yes. It is rated for up to 1600 volts, making it suitable for high-voltage rectification within the limits of its 0.25 amp forward current rating.
High voltage, controlled recovery, and straightforward through-hole mounting. If you are maintaining or building a high-voltage supply that calls for a 1600V fast rectifier, this BY203-16STR fits the role.
