Product Overview
Reinforced Isolation Optocoupler 10.16 mm Wide DIP with Base Pin
Condition
Unused, New Old Stock (NOS). Clean and in excellent condition with no issues noted during visual inspection. Sourced through our trusted surplus and legacy channels.
Ships same business day. Reliable parts since 1999. Honest pricing, no nonsense.
Product Overview

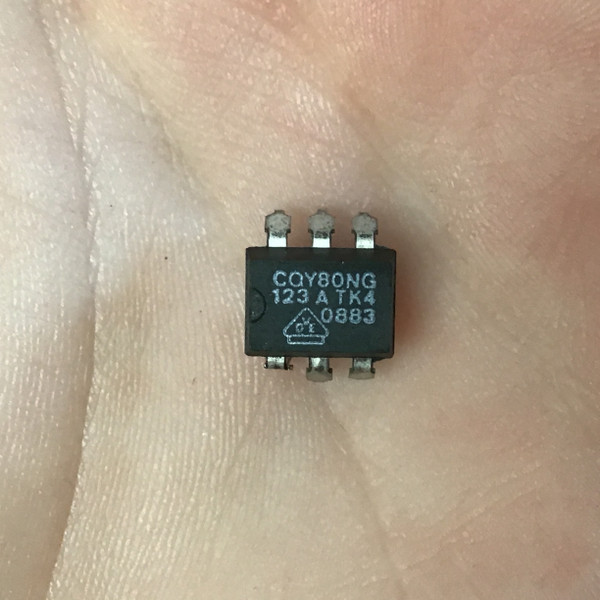

Vishay CQY80NG is a single-channel optocoupler combining a gallium arsenide infrared LED with an NPN phototransistor output. The "G" suffix designates the 10.16 mm wide DIP-6 leadform, providing increased creepage and clearance distances for reinforced isolation designs. This wider footprint is critical in applications that must meet higher safety spacing requirements without redesigning the PCB.
Designed for industrial power supplies and microprocessor interfaces, the CQY80NG offers reinforced isolation performance with an accessible base pin for output bias control. With the CQY80 series officially moved to End-of-Life status, original Vishay stock in the 10.16 mm package is increasingly sought after for maintenance and certified repair work.
Key Features
- Optocoupler with GaAs infrared LED input and NPN phototransistor output
- Leadform "G" 10.16 mm (0.4 inch) wide DIP-6 package
- Phototransistor with accessible base connection (Pin 6)
- Minimum current transfer ratio (CTR): 50% at IF = 10 mA
- Collector-emitter voltage (VCEO): 32V maximum
- Emitter-collector voltage (VECO): 7V maximum
- Forward voltage (VF): 1.25V typical, 1.6V maximum
- Isolation test voltage (VISO): 3750 to 5000 VRMS depending on standard
- Repetitive peak isolation voltage (VIORM): 600 VRMS
- Low coupling capacitance: 0.3 pF typical
- Compliant with DIN EN 60747-5-5 (VDE 0884) and UL1577
Applications
- Switch-mode power supplies (SMPS)
- Line receiver isolation circuits
- Computer peripheral interfaces
- Microprocessor system interfaces
- Industrial control signal isolation
- Reinforced isolation designs requiring 10.16 mm creepage
- Legacy equipment maintenance and certified repairs
Frequently Asked Questions
What does the "G" suffix indicate?
The "G" denotes the 10.16 mm wide DIP-6 leadform. This provides increased creepage and clearance compared to standard 7.62 mm packages and is required in many reinforced isolation designs.
Is this a high-speed optocoupler?
No. With typical turn-on and turn-off times in the microsecond range, it is intended for DC and low-frequency isolation rather than high-speed digital logic.
What is the purpose of the base pin?
Pin 6 provides access to the phototransistor base, allowing external biasing to adjust switching characteristics or stability in noisy environments.
Is this still in active production?
The CQY80 series has been moved to End-of-Life status. Availability is limited to remaining inventory and secondary market stock.
Can a standard narrow DIP optocoupler replace this?
Not without reviewing PCB spacing and safety certification requirements. The 10.16 mm leadform is often specified specifically for reinforced isolation compliance.
When a design calls for reinforced isolation and the board was laid out for a 10.16 mm footprint, there is no easy substitute. This CQY80NG keeps legacy power and interface circuits compliant and intact.
