AMP 51426-2 Safe High Voltage Straight RF Plug for RG-59 and RG-62
Condition

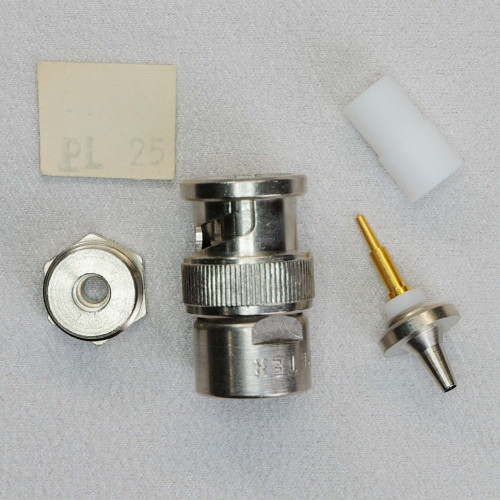

Unused new old stock (NOS). Unassembled connector hardware held in the printed factory bag with date code 89 40. Markings legible: AMP INC 51426-2 89 40. Includes connector body with knurled coupling nut, outer crimp ferrule, insulating sleeve, and loose gold-plated socket contact pin. Sold each.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Engineered for high-voltage coaxial lines, the AMP 51426-2 straight SHV plug provides secure bayonet coupling for test equipment, nuclear instrumentation, and laboratory power circuits. Rated for 5,000 volts peak (3,500 volts RMS), the connector interfaces with RG-59 and RG-62 series coaxial lines using a dual-crimp termination for the center contact and outer braid. The SHV design utilizes recessed contacts and overlapping insulation barriers to prevent accidental electrical shock during disconnect.
Key Features
- Connector series: SHV (Safe High Voltage)
- Connector style: Straight cable plug with bayonet coupling
- Voltage rating: 5,000 V peak, 3,500 V rms operating
- Compatible cable types: RG-59, RG-59A, RG-59B, RG-62, RG-62A, RG-62B, and RG-140
- Termination method: Dual crimp (center pin and outer ferrule)
- Contacts: Gold-plated center female socket pin and silver-plated body
Applications
- Terminating high-voltage coaxial feed lines on nuclear instrumentation module (NIM) bins and radiation detectors
- Wiring high-voltage DC power supplies and photomultiplier tube (PMT) bias cables on laboratory test benches
- Building custom amateur science apparatus, geiger counter probes, or fusor power leads requiring touch-safe 5kV connections
Frequently Asked Questions
What coaxial cable sizes fit the AMP 51426-2 connector?
It is designed for RG-59, RG-59A, RG-59B, RG-62, RG-62A, RG-62B, and RG-140 coaxial cables.
Can an SHV plug mate with a standard BNC jack?
No. SHV connectors use thicker dielectric insulators and a specific outer pin configuration to prevent accidental mating with low-voltage BNC jacks.
What contact type is included with this plug?
This plug kit includes a gold-plated female socket center contact for dual-crimp installation.
What tooling is needed to assemble this connector onto coaxial cable?
Assembly requires standard coaxial cable stripping tools and a dual-crimp hand tool matched to RG-59 or RG-62 ferrule and center contact hex crimp dimensions.
