General Instruments KBL06 Glass Passivated Bridge Rectifier - 4A 600V Through-Hole, Unused NOS
Condition

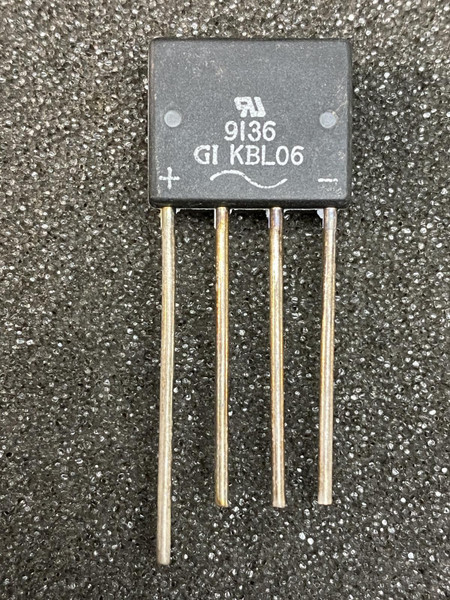

Unused NOS. Markings legible: GI KBL06, UL, date code 9136, polarity symbols. Four straight leads, no damage observed. Light surface scuff on face noted; does not affect function. Sourced from an electronics distributor consolidating inventory.
Same business day shipping from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
General Instruments KBL06 - glass passivated single-phase full-wave bridge rectifier in a 4-pin inline through-hole package (KBL-4). Rated 4A average forward output current and 600V maximum repetitive peak reverse voltage. Converts AC to DC in linear and general-purpose power supply circuits. Polarity symbols molded on body for correct installation.
Key Features
- Maximum repetitive peak reverse voltage (VRRM): 600V
- Average rectified forward output current (IO): 4A
- Peak forward surge current (IFSM): 200A (8.3ms single half sine-wave)
- Maximum forward voltage drop (VF): 1.1V per diode at 4A
- Operating temperature range: -50°C to +150°C
- Glass passivated junction construction
- Package: KBL-4, 4-pin inline through-hole (SIP)
- Polarity symbols stamped on body
- UL recognized (file E54214)
- Case dielectric strength: 1500 VRMS
Applications
- Replacing a failed bridge rectifier in a vintage linear power supply - desolder the old part, drop this in, confirm polarity from the body markings, and the supply is back online
- Restoring older consumer audio gear, monitors, or printers where the original KBL06 has failed and an original GI-branded part keeps the build authentic
- Prototyping AC-to-DC rectification stages on through-hole PCBs where the 4-pin inline footprint fits the layout
- Builders adding a regulated DC rail to a workshop project or DIY bench supply using a 120V or 240V transformer secondary
- Hobbyist power supply builds where a full-wave bridge is needed and through-hole assembly is preferred over surface-mount
Frequently Asked Questions
What AC input voltage can the KBL06 handle?
The 600V VRRM rating corresponds to a maximum AC RMS input of 420V. Standard 120V and 240V mains applications are well within range.
Is this a drop-in replacement for other KBL06 parts from different brands?
Yes. The KBL06 is a standardized part number across manufacturers including General Instruments, Vishay, and General Semiconductor. Pin layout, voltage, current, and package dimensions follow the same standard, making this a direct replacement.
Does this include a heat sink?
No heat sink included. For applications running near the 4A maximum, thermal management should be considered to keep junction temperature within the -50°C to +150°C operating range.
Is this suitable for switching power supply (SMPS) applications?
The KBL06 is a standard rectifier optimized for line-frequency (50/60 Hz) AC-to-DC conversion. It is not designed for high-frequency switching stages; those applications typically require fast-recovery or Schottky rectifiers.
There is something satisfying about a GI-marked bridge rectifier from 1991 dropping into the exact spot a failed one left behind - same footprint, same polarity marks, same honest silicon doing the same job it was designed for. Bring the supply back up and hand the machine back over.
