Product Overview
Anti-Weld KPM Relay Pole, Heavy AC / Standard DC Pilot Duty, 10 A AC, 600 V Maximum
Condition
Unused, new old stock (NOS). Markings legible: ANTI-WELD; HEAVY AC/STD DC PILOT DUTY; 10A AC 600V MAX. KPM POLE.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. Satisfaction guaranteed, every time.
Product Overview

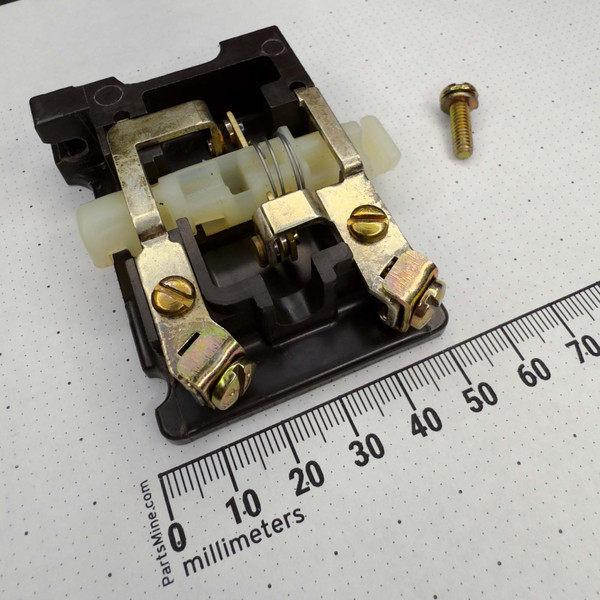

Joslyn Clark Controls catalog number KPM-35, NAED number 55950, is a KPM relay contact pole: a molded housing with a spring-return contact carrier and two screw terminals. Molded into the back of the housing beside an ANTI-WELD label is its rating: heavy AC and standard DC pilot duty, 10 A AC, 600 V maximum.
Key Features
- Joslyn Clark Controls catalog number KPM-35, NAED number 55950
- Pilot duty rating: heavy AC, standard DC
- 10 A AC, 600 V maximum
- ANTI-WELD label on the back of the housing
- Bridging movable contact on a spring-return carrier that runs through the housing
- Two screw terminals, each with a slotted binding screw and a clamp-style wire lug
- Dark brown molded housing with a white carrier
Applications
- Replacing a worn or damaged pole in a Joslyn Clark relay built with KPM poles
Frequently Asked Questions
Does the KPM-35 have a NAED number?
Yes, 55950. NAED numbers are the item codes of the electrical distribution trade, so a parts list or purchase record that calls for NAED 55950 is calling for this Joslyn Clark KPM-35 pole.
More pieces cost less each - the price-break table on this page shows what each quantity costs.
Pilot duty contacts do the deciding in a control panel: they switch the coils of the contactors and starters, and the contactors do the heavy lifting. When one KPM pole wears out, the swap is one pole, not the whole relay.
