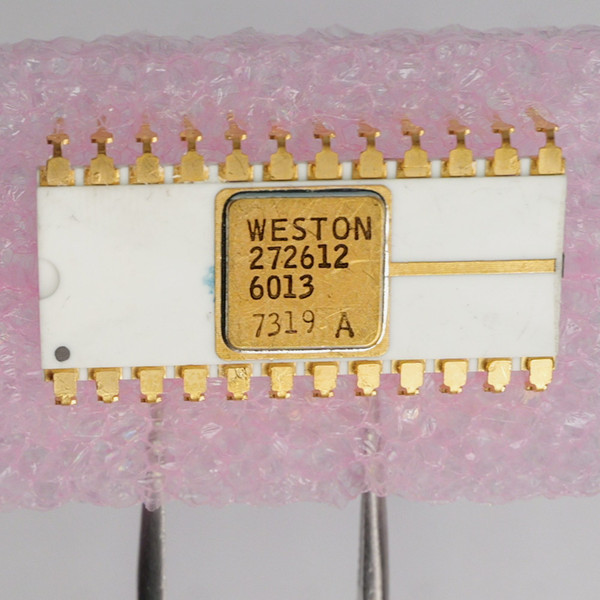

Vintage Side-Brazed 24-Lead Integrated Circuit for Instrumentation Repair
Condition
Used equipment pull. White ceramic body with gold-plated side-brazed leads and gold lid. Leads show light insertion marks from prior socket installation. Markings legible: WESTON 272612. Evaluation: Visual inspection only. Function testing not performed. Sold each.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Weston Instruments part number 272612 is a 24-lead digital microcircuit housed in a vintage side-brazed white ceramic dual in-line package with a gold kovar lid. Indexed under NSN 5962-01-078-7001 for CAGE 65092, this component was manufactured for specialized instrumentation and digital control assemblies. Built with standard 0.1-inch lead pitch and 0.6-inch row spacing, it serves legacy hardware restoration and maintenance of vintage Weston measurement systems.
Key Features
- 24-pin side-brazed white ceramic dual in-line package
- Gold-plated leads with standard 0.1 in (2.54 mm) pitch
- 0.6 in (15.24 mm) row spacing
- Gold-plated kovar lid with top-side ceramic ground trace
- Operating temperature range from -55.0 °C to +125.0 °C
- Digital microcircuit architecture indexed under NSN 5962-01-078-7001
Applications
- Restoring legacy Weston Instruments test benches and measurement apparatus requiring original microcircuits
- Servicing vintage industrial control hardware and digital instrumentation modules
- Repairing period aerospace and laboratory electronics utilizing side-brazed ceramic DIP packages
- Display and study for computing history collectors and vintage semiconductor archivists
Frequently Asked Questions
What package type does the Weston 272612 use?
It uses a 24-lead side-brazed ceramic dual in-line package (CDIP-24) with gold leads, a 0.1-inch lead pitch, and a 0.6-inch row spacing.
Are technical manuals or pinout documentation included?
Not included.
What condition is this pulled IC in, and how is it evaluated?
This component was pulled from decommissioned equipment. Visual inspection confirms intact ceramic packaging and clean gold leads, but electrical function testing has not been performed.
Before plastic packaging took over the world, critical circuits were sealed in white ceramic and real gold so they would outlive the machine around them. If you are keeping a vintage Weston chassis running on your bench, here is the original silicon to make it happen.
