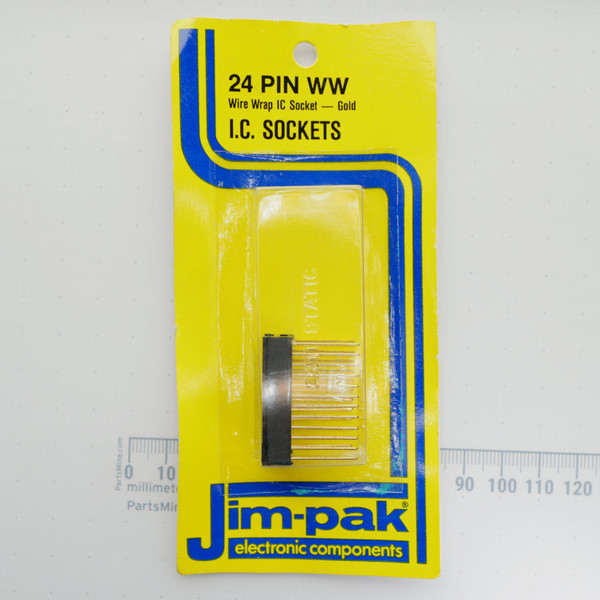

Jim-pak 24-PIN-WW 24-Pin Wire Wrap IC Socket Gold DIP-24 Wide NOS New

Jim-pak 24-PIN-WW 24-Position Wire-Wrap Integrated Circuit Socket

Condition

New old stock vintage component. Contacts and square wire-wrap posts remain straight with clean gold finish. Unused inventory.

Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.

Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.

Product Overview

The Jim-pak 24-PIN-WW is a classic 24-position wire-wrap socket configured for standard wide dual in-line package (DIP) components. Featuring square posts designed for multi-level wire-wrap wire wrapping and gold-plated contact points, it provides reliable mechanical retention and electrical conductivity for digital logic, microprocessors, or memory ICs on prototype and point-to-point construction boards.

Key Features

• 24-pin dual in-line layout (2 rows of 12 positions)
• 0.100 inch (2.54 mm) pin-to-pin contact pitch
• 0.600 inch (15.24 mm) row-to-row spacing for standard wide DIP components
• Long square wire-wrap pin tails for solderless wire wrapping
• Gold-plated contact points for low resistance and oxidation protection
• Closed-frame rigid thermoplastic body construction

Applications

• Prototyping microcomputer and digital logic circuits on standard perforated breadboards
• Restoring vintage computing, synthesizer, or industrial controller boards requiring period-correct wire-wrap construction
• Installing expensive or heat-sensitive 24-pin integrated circuits without direct soldering
• Bench testing, circuit experimentation, and custom electronic hobby builds

Frequently Asked Questions

What center spacing does this 24-pin socket use?

This socket uses standard 0.600 inch center spacing between rows, designed to seat wide 24-pin integrated circuits.

Are the pins suitable for wire-wrap tools?

Yes. The long square terminal posts are specifically sized and profiled to hold multiple wraps of standard wire-wrap wire.

Why buy a single vintage wire-wrap socket instead of a bulk lot?

Prototyping or repairing legacy 24-pin DIP hardware usually requires just one sound connector rather than an uninspected bulk bundle. This vintage component is ready for immediate bench work. Shipping is $8 flat rate, free once the order passes $28, and orders leave the Idaho warehouse the same or next business day.

Built for an era when circuits were wrapped one steady turn at a time, this socket brings dependable gold contacts to your next legacy restoration or custom build.
