E22H2X53 Complete 22.5mm 48VDC Red LED Indicating Light Kit - Eaton E22 Series
Condition

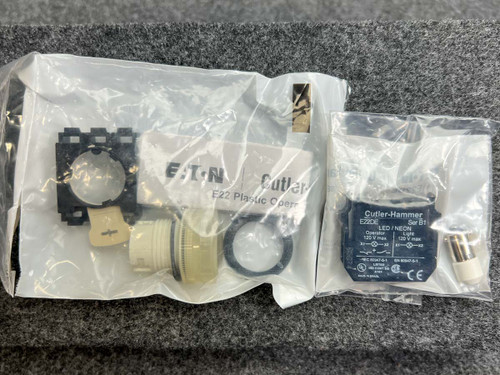

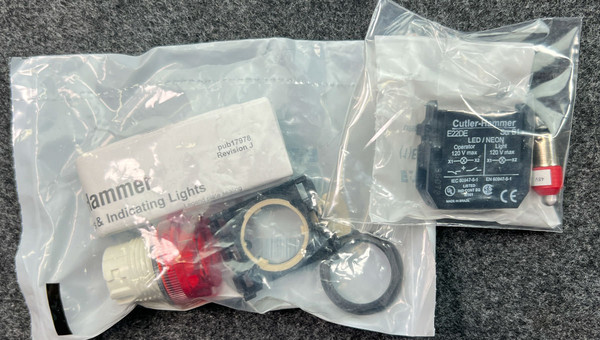

Unused NOS. All components are factory-sealed in original poly bags with labels clean and legible. Photos confirm two sealed bags: one containing the E22H2 indicating light unit with red lens (SER A1), one containing the E22DE direct voltage light unit (SER B1) with 48V bayonet-base LED bulb and mounting hardware. "48V" is visible on the bulb body. Sourced from a government research facility.
Ships same business day from our Idaho warehouse. Carefully packed.
Backed by our guarantee. Serving customers since 1999.
Product Overview
Eaton Cutler-Hammer E22H2X53 is a complete 22.5mm panel mount indicating light assembly for 48VDC control circuits. Part of the E22 series of industrial indicating devices, this kit includes everything needed to install a red LED status indicator in a standard 22.5mm panel cutout. The "X53" designation identifies the 48VDC voltage and red lens configuration. Widely used in industrial control panels to signal motor run status, process completion, alarm conditions, and equipment state.
Key Features
- Operating voltage: 48VDC
- Lens color: Red
- Panel mounting hole: 22.5mm diameter
- Light source: LED (bayonet-base bulb)
- Includes E22H2 indicating light unit with red lens
- Includes E22DE direct voltage light unit for LED/neon bulb
- Includes 48V LED bayonet bulb
- Factory-sealed in original OEM packaging
- NEMA ratings 3, 3R, 4, 4X, 12, 13 when mounted in a suitable enclosure (per E22 series specifications)
Applications
- Control panel status indication - motor run, process complete, alarm active
- Industrial machine HMI panels requiring 48VDC signaling
- Equipment upgrade or replacement for existing E22 series indicator positions
- Custom control enclosures and automation builds where 48VDC bus voltage is present
- Bench test setups and lab panels needing a reliable 48VDC pilot light
Frequently Asked Questions
What voltage does this indicator require?
48VDC. The E22H2X53 is designed specifically for 48-volt DC circuits. It is not compatible with AC systems or other DC voltages such as 24V or 120V without different components.
What is included in this listing?
One complete E22H2X53 assembly: the E22H2 indicating light unit with red lens, the E22DE direct voltage light unit for LED/neon bulb, and a 48V bayonet-base LED bulb. All components are factory-sealed in original packaging as shown in the photos.
What panel cutout size does this require?
22.5mm diameter mounting hole. Standard for the E22 series.
Is the LED replaceable?
The E22DE unit accepts a bayonet-base LED bulb, and a 48V LED bulb is included. Whether the bulb is field-replaceable in service depends on your panel configuration. Not confirmed beyond what the included components show.
Is a manual included?
Not included.
A red light in a control panel is one of the oldest, clearest signals in industrial language - and this one has been waiting in its original bag to do exactly that job. Crack the seal, drop it in the hole, wire it up, and put it to work.
