Single-Pole Definite Purpose Contactor, 25A at 600V With a 24 VAC Coil, Unused in Its Eaton Box
Condition

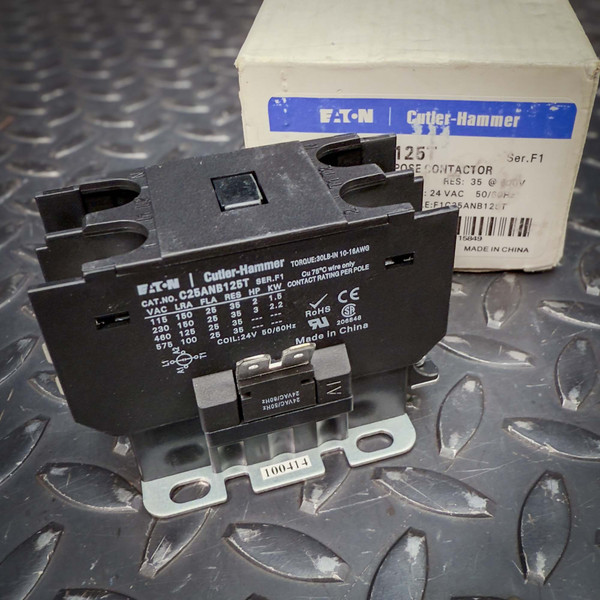

Unused, new old stock. The contactor comes with its original Eaton Cutler-Hammer carton, and the carton is the part that shows its age: the white box is lightly soiled and rubbed along the edges and one corner from years on a shelf. The contactor itself is clean. The black molded housing carries no installation marks or heat discoloration, the quick-connect tabs are bright, and the screw heads show no driver damage. A small white label reading 100414 sits on the zinc-plated steel mounting bracket and matches the same number printed on the box label. The photographed piece is representative of the stock on hand.
Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The C25ANB125T is Eaton Cutler-Hammer's single-pole definite purpose contactor, the workhorse type that switches a condensing unit, a pump, or another fixed load from a low-voltage control circuit. The box label reads AMPS: 25 @ 600V, RES: 35 @ 600V, OPEN TYPE, POLE: 1, COIL: 24 VAC 50/60Hz, STYLE: F1C25ANB125T. The nameplate molded into the unit repeats the contact rating per pole in a four-row table: 115 VAC at 150 LRA, 2 HP, 1.5 kW; 230 VAC at 150 LRA, 3 HP, 2.2 kW; 460 VAC at 125 LRA; and 575 VAC at 100 LRA, every row showing 25 FLA and 35 amps resistive. Terminal torque is called out on the nameplate as 30 lb-in for 10 to 16 AWG copper wire rated 75 C. The unit carries the Series F1 designation, a UL Recognized Component mark (the backwards RU), a separate CSA mark with 206848 printed directly beneath the CSA logo, plus CE and RoHS marks, and is made in China.
Key Features
- Brand: Eaton Cutler-Hammer
- Catalog number: C25ANB125T, Series F1 (box style F1C25ANB125T)
- Type: definite purpose contactor, open type, 1 pole
- Contact rating per pole: 25 FLA, 35 amps resistive
- Box label rating: 25 amps at 600V, 35 amps resistive at 600V
- Nameplate table: 115 VAC / 150 LRA / 2 HP / 1.5 kW and 230 VAC / 150 LRA / 3 HP / 2.2 kW
- Nameplate table: 460 VAC / 125 LRA and 575 VAC / 100 LRA
- Coil: 24 VAC, 50/60 Hz, marked on both coil quick-connects and at the A1 terminal
- Terminations: screw terminal plus quick-connect tabs at each power terminal
- Wiring: 30 lb-in terminal torque, 10 to 16 AWG, copper 75 C wire only
- Zinc-plated steel mounting bracket with slotted holes, factory fitted
- Marks: UL Recognized Component (backwards RU), CSA with 206848 beneath the CSA logo, CE, RoHS; made in China
Applications
- HVAC service tech replacing a pitted single-pole contactor in a residential condensing unit already wired for a 24 VAC thermostat circuit
- Irrigation or well contractor switching a pump motor from a low-voltage timer panel
- Maintenance electrician stocking a shelf spare for a rooftop unit so the next hot-day callout does not wait on a supply house
- Panel builder who needs an open-type contactor that bolts flat to a subplate on the bracket it ships with
- Equipment restorer swapping an aged contactor in an older control cabinet where the 24 VAC control wiring is already in place
Frequently Asked Questions
What coil voltage does this contactor need?
24 VAC, 50/60 Hz. It is printed on the nameplate as COIL: 24V 50/60Hz, and both coil quick-connects are individually marked 24VAC/50Hz and 24VAC/60Hz, with A1 molded into the housing beside them. This is the standard control voltage for residential and light commercial HVAC, so if your existing transformer feeds a 24 volt thermostat circuit, the coil matches.
How much can it switch, and at what voltage?
The box label states AMPS: 25 @ 600V and RES: 35 @ 600V. The nameplate breaks the same rating out per pole across four supply voltages: 25 FLA and 35 amps resistive at 115, 230, 460 and 575 VAC, with locked-rotor figures of 150, 150, 125 and 100 amps and horsepower ratings of 2 HP at 115 VAC and 3 HP at 230 VAC. Our earlier copy listed a 277 VAC rating; neither the box nor the nameplate shows that figure, so we have replaced it with what is actually printed on this unit. The nameplate is legible in the photos, so check it against your application before you order.
Are the terminals screw type or quick-connect?
Both, at each power terminal. The top-down photo shows a captive screw terminal on the line end and another on the load end, with quick-connect spade tabs alongside each one, so you can land a ring lug or push on a spade without an adapter. The nameplate specifies 30 lb-in of torque on 10 to 16 AWG copper wire rated 75 C.
The box says one pole, but the housing is marked L1, L2, T1 and T2. What am I actually getting?
A single-pole contactor. The box label reads POLE: 1 and the wiring diagram on the nameplate shows one L1 to T1 pole with the A1 and A2 coil terminals. The molded housing carries L1, L2, T1 and T2 lettering, but the photos show one power terminal position fitted at each end. Look at the top-down and rear views before you order if your circuit needs a second switched leg.
Why buy this one boxed contactor instead of chasing a lot of used control gear?
Because you can see exactly what you are getting before you spend anything. This is a single Eaton Cutler-Hammer contactor in its own factory carton, photographed from six angles with the nameplate table and both 24 VAC coil markings readable, and priced on its own. A surplus lot or an auction pallet of contactors comes with unknown coil voltages, unknown contact wear, and no box. A condenser or a pump panel needs one contactor, so that is how this one sells. Shipping is $8 flat rate and free once your order passes $28, and orders leave our Idaho warehouse the same or next business day.
Definite purpose is a fair name for a part with exactly one job: pull in when the 24 volts arrive, and hold until they stop. This Series F1 unit sat out its whole career in the box waiting for a call that never came, so the first one it answers can be yours.
