Product Overview
Amphenol RF 31-321-10RFX 50 Ohm Straight Male BNC Connector
Condition

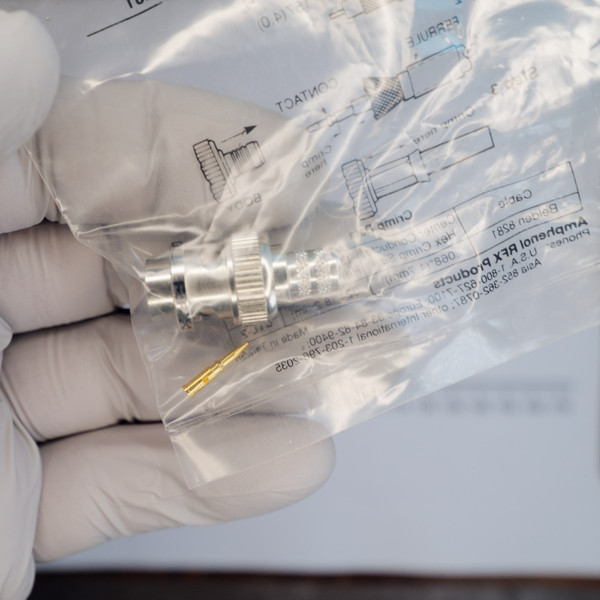

Unused new old stock (NOS). Hardware is clean and complete with connector body and gold-plated center contact pin.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Engineered specifically for Belden 8281 and 88281 coaxial cables, the Amphenol RFX 31-321-10RFX straight male BNC crimp plug delivers 50-ohm impedance with a dependable bayonet locking interface. A nickel-plated brass body and gold-plated center pin ensure stable signal transmission across broadcast video and RF instrument connections up to 4 GHz.
Key Features
- 50-ohm nominal impedance with operating frequency range from DC to 4 GHz
- Designed specifically for Belden 8281 and Belden 88281 coaxial cables
- Bayonet coupling mechanism per MIL-STD-348 and IEC 60169-8 standards
- Three-piece crimp termination with gold-plated center contact and nickel-plated brass body
- Hex crimp dimensions: 0.068 in (1.7 mm) center contact and 0.324 in (8.2 mm) outer ferrule
- Compatible with CTL-2 crimp tooling
Applications
- Terminating precision Belden 8281 coaxial cable runs in analog video or RF test benches
- Repairing or building custom bayonet-lock patch cables for vintage oscilloscopes and signal generators
- Ham radio and DIY maker projects requiring robust 50-ohm coaxial interconnections
Frequently Asked Questions
Which cable types fit the Amphenol 31-321-10RFX plug?
This connector is sized specifically for Belden 8281 and Belden 88281 coaxial cable. Cable jacket and dielectric dimensions differ across coaxial lines, so use with other cable types is not recommended.
What crimp die sizes are required for assembly?
Assembly requires a 0.068-inch (1.7 mm) hex crimp for the center contact pin and a 0.324-inch (8.2 mm) hex crimp for the outer ferrule, matching the Amphenol CTL-2 crimp tool.
Why buy an individual Amphenol BNC plug here instead of chasing a surplus lot?
You get the exact, genuine Amphenol RFX connector needed for your Belden 8281 cable without buying an oversized bulk pack or taking chances on mystery bins. Shipping is $8 flat rate, free once the order passes $28, and orders leave our Idaho warehouse the same or next business day.
A clean crimp on Belden 8281 is one of those satisfying bench jobs where the right connector makes all the difference. Strip your cable, seat the pin, and put that line back in service.
