Action Instruments Action Pak 1001-7064 DC Input Limit Alarm Relay
Condition

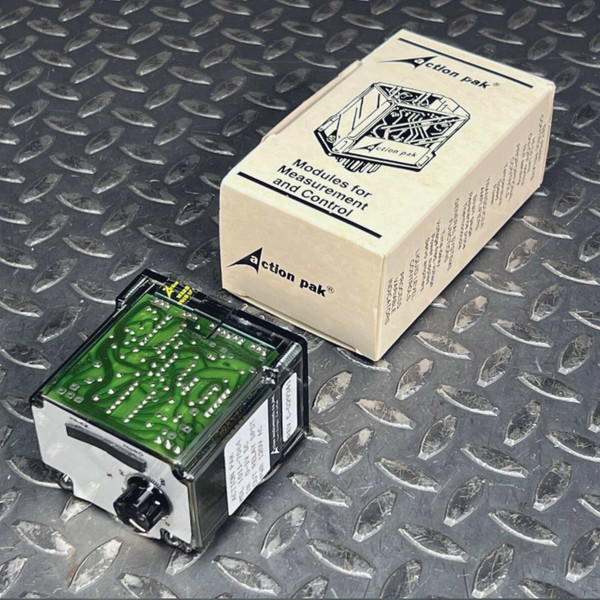

Unused new old stock (NOS). Markings legible: ACTION PAK MDL 1001-7064, IN 0-1V DC, OUT RELAY DPDT, PWR 120V AC, REV E-029341. Manufacturer warranty sticker intact across the housing seam.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Action Instruments Action Pak model 1001-7064 is a plug-in DC voltage limit alarm module designed for process monitoring and equipment protection. Operating on a 120V AC line supply, it accepts a low-level 0 to 1V DC input signal and trips an internal DPDT relay output when the monitored process crosses the calibrated threshold. A top-mounted rotary dial calibrated 0 to 100 percent provides direct setpoint adjustment, while accessible span and zero trimpots allow calibration trimming. The unit mounts into a standard 20-pin circular base socket for rapid installation and service in industrial control panels.
Key Features
- Input signal range: 0 to 1V DC
- Output configuration: DPDT electromechanical relay
- Contact rating: 5A resistive at 120V AC
- Operating power: 120V AC, 50/60 Hz
- Setpoint adjustment: Top-mounted dial calibrated 0% to 100%
- Calibration controls: Accessible SPAN and ZERO trimpots under front cover strip
- Mounting: 20-pin circular keyed plug-in base
- Housing: Clear polycarbonate enclosure with molded base
Applications
- Monitors low-voltage DC signals from process transducers, current shunts, or analog instrument cards.
- Triggers interlocks, sirens, or status indicators when DC bus or sensor voltage exceeds setpoint.
- Provides benchtop experimenters and control builders with a dedicated hardware comparator relay that requires no microcontrollers.
Frequently Asked Questions
Is the relay output latching or non-latching?
The internal DPDT relay operates in non-latching mode, automatically resetting once the 0-1V DC input signal drops back below the dial setpoint threshold.
How is the trip setpoint calibrated on this unit?
The primary threshold is set using the top-mounted 0% to 100% dial, while precise calibration trimming is handled through the SPAN and ZERO trimpots located under the protective front cover strip.
What mounting socket does this module plug into?
This unit requires a standard Action Pak 20-pin circular keyed socket, such as the MD20 chassis or track-mounted base, wired for 120V AC power and 0-1V DC signal input.
Built for control racks where an analog signal needs a decisive relay trip without software in the loop. Plug it in, dial your percentage, and let the hardware handle the line.
