Gordos IDC5N Solid-State I/O Input Module - 10-48V AC/DC Input, 5VDC Logic, Optically Isolated
Condition
Used and in good condition, recovered from demanufactured equipment at a government research facility. Normal wear with nothing out of the ordinary. Evaluation: Visual inspection only. Function testing not performed. 4 through-hole pins are intact with no visible damage. Photos show the specific module type you will receive.
Ships same or next business day from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
Backed by our guarantee. Serving customers since 1999.
Product Overview

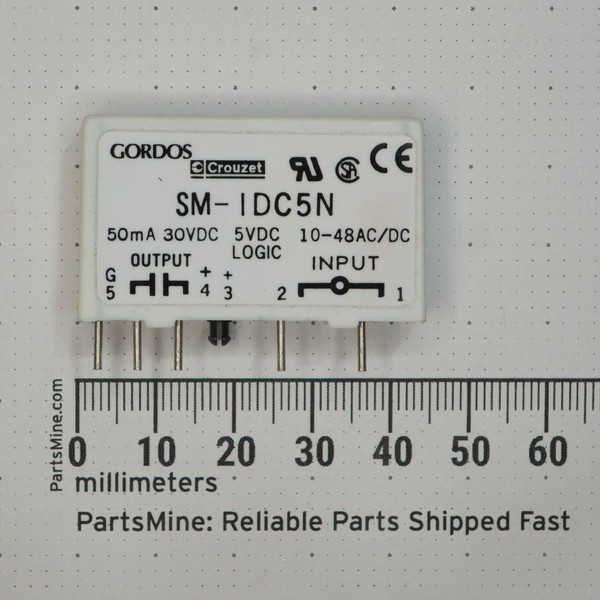

Gordos IDC5N single-channel AC/DC input module in the standard 0.6-inch SIP form factor. Accepts 10-48V AC/DC field input and converts it to a 5VDC logic-compatible signal, with optical isolation separating the field side from the control side. The "N" designation indicates enhanced noise immunity per NEMA ICS 2-230. Label on the unit confirms: 50mA, 30VDC load, 5VDC logic, 10-48 AC/DC input. Gordos is now part of Crydom.
Key Features
- Input voltage range: 10-48V AC/DC (confirmed on unit label)
- Logic voltage: 5VDC
- Output current: 50mA at 30VDC
- Enhanced noise immunity - "N" variant per NEMA ICS 2-230
- Optical isolation: 4000V transient
- Single-channel input - one signal per module
- Standard 0.6-inch SIP module form factor, six through-hole pins
- Assembled in Mexico - visible on unit
Applications
- PLC and relay-based control panel input sensing
- Interfacing AC/DC field devices - switches, pushbuttons, sensors - to 5VDC logic systems
- Replacement module for Gordos or Crydom 0.6-inch I/O board systems
- Custom automation builds requiring isolated AC/DC input sensing
- Maker and hobbyist projects needing optically isolated field input to low-voltage logic
Frequently Asked Questions
What mounting board does this module require?
It requires a mounting board designed for standard 0.6-inch I/O modules. Gordos, Crydom, and compatible third-party boards in this format will accept it.
Is this compatible with 24VDC logic systems?
No. The IDC5N requires a 5VDC logic supply. It is not directly compatible with 24VDC logic systems without a separate logic-level interface.
What is the difference between the IDC5N and the standard IDC5?
The "N" suffix denotes enhanced noise immunity per NEMA ICS 2-230. The IDC5N also accepts a wider input range (10-48V AC/DC as confirmed on this unit) compared to some IDC5 variants.
Does this handle both AC and DC input signals?
Yes. The label on this unit confirms 10-48V AC/DC input, making it suitable for either AC or DC field devices within that voltage range.
Is a manual or documentation included?
Not included.
Gordos built these modules for industrial environments where the field side is loud and the logic side needs to stay clean. The isolation still works the same way it did when this left the factory - and now it's ready for whatever board you're putting it in.
