1.5KE300CA Bidirectional TVS Diode - 1500 W, 256 V Standoff, DO-201 Axial
Condition
The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

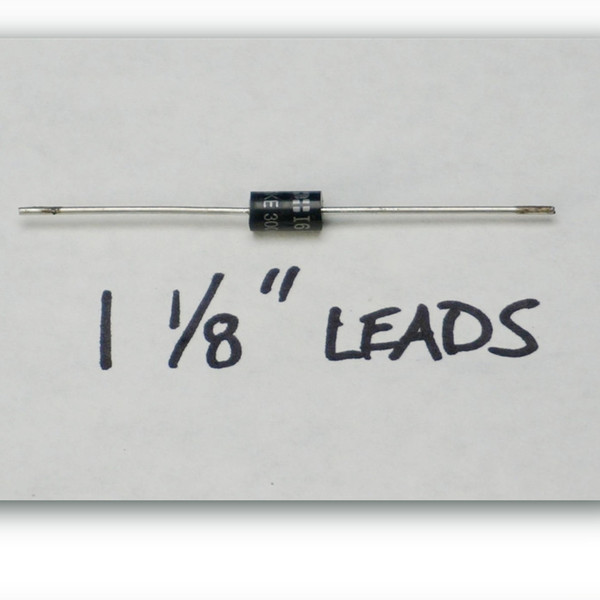

This is the 1.5KE300CA, the 300 V member of the 1.5KE family of 1500 W axial transient voltage suppressors that has been second-sourced by several makers under exactly that spelling for decades. The photographed unit is a black molded axial body on bright leads, marked KE 300 with the leading characters wrapping around out of frame; no maker's mark is visible in these photos, so we attribute the part to no manufacturer. Photographed alongside the stock is a handwritten shelf note reading 1 1/8" LEADS, which is the lead length that note gives. We have 263 pieces on the shelf, sold each.
Key Features
- 1500 W peak pulse power at the 10/1000 microsecond waveform, per the published 1.5KE series data
- Reverse standoff voltage VWM 256 V, per published 1.5KE300CA data
- Breakdown voltage VBR 285 V minimum to 315 V maximum at 1 mA test current, per published 1.5KE300CA data
- Maximum clamping voltage VC 414 V, per published 1.5KE300CA data
- Peak pulse current 3.6 A, per the Vishay 1.5KE300CA-E3/54 catalogue entry at Digi-Key
- Bidirectional with 5 percent breakdown tolerance, established by the 1.5KE300CA designation this stock is held and ordered under, not by the body marking
- DO-201 axial leaded molded plastic package; lead length 1 1/8 inches per the handwritten note photographed with the stock
- Verify against the published 1.5KE series data from ST, Littelfuse or Vishay before designing in
Applications
- Clamping surges on 200 V class DC rails and rectified high-voltage lines
- Protecting driver and gate circuits on offline switching supplies
- Input protection on industrial control and instrument boards
- Bench and repair stock for older equipment that used 1.5KE parts in quantity
Frequently Asked Questions
How many should I order? Order the count your build needs; we hold 263 pieces of this one, so a service kit or a short production run comes off the same shelf. Shipping is $8 flat rate and free on orders over $28, so small parts like this ship smartest as part of a larger order.
What does the body marking read? On the photographed unit the legible text is KE 300, with the leading characters wrapping around the far side of the body and the CA suffix not visible in these photos. The bidirectional character of this part comes from the 1.5KE300CA designation the stock is held under; if your design depends on bidirectional rather than unidirectional behavior, ask us before ordering and we will check what we can confirm here before it ships.
The handwritten note photographed with these puts the leads at 1 1/8 inches, and that is still the most useful number on this page for anyone fitting them into an existing board.
