Product Overview
3.48V 400mW DO-35 Through-Hole Zener Voltage Reference Diode
Condition
Unused new old stock (NOS). Straight, clean wire leads with no solder residue. Body markings consist of distinct color bands.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
This 3.48-volt, 0.4-watt zener diode provides stable voltage regulation and reference clamping in analog circuitry. Built in a compact DO-35 style axial package with color-band identification, it serves vintage test equipment maintenance, bench restorations, and circuit designs requiring precise breakdown values.
Key Features
- Nominal Zener Voltage: 3.48 V
- Power Dissipation: 0.4 W (400 mW)
- Package Type: DO-35 axial lead
- Mounting Style: Through-hole
- Body Length: 4 mm
- Markings: Multi-color identification bands
Applications
- Restoring vintage instrumentation and power supply boards that call for specific reference voltages.
- Breadboarding custom voltage regulation, level shifting, and input protection circuits.
Frequently Asked Questions
What is the voltage and wattage rating of this diode?
The diode carries the intake designation 3.48V.4W-ZD, denoting a 3.48-volt nominal breakdown voltage and a 0.4-watt (400 mW) power dissipation rating.
What are the physical dimensions?

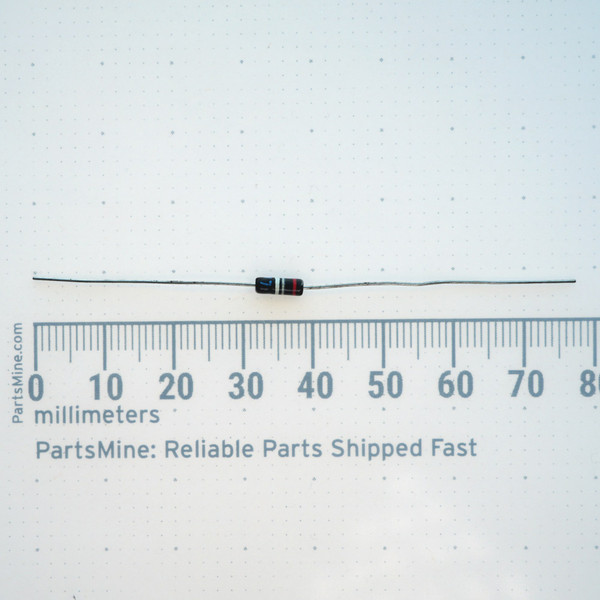

The cylindrical body measures 4 mm in length with standard axial leads for through-hole PCB or point-to-point wiring.
Why purchase an individual diode instead of a bulk assortment?
Buying an individual verified component gives you the exact voltage rating needed for a repair without paying for an assortment of unneeded values. Orders leave our Idaho warehouse the same or next business day with $8 flat rate shipping, or free shipping on orders over $28.
Some repair jobs stall out for want of a single oddball reference voltage that modern parts bins forgot. This little glass diode steps into the circuit to lock the rail down exactly where the original design intended.
