Panasonic ECUV1H152KBM - 1500 pF 50 V Multilayer Ceramic Chip Capacitor
Condition
New. The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

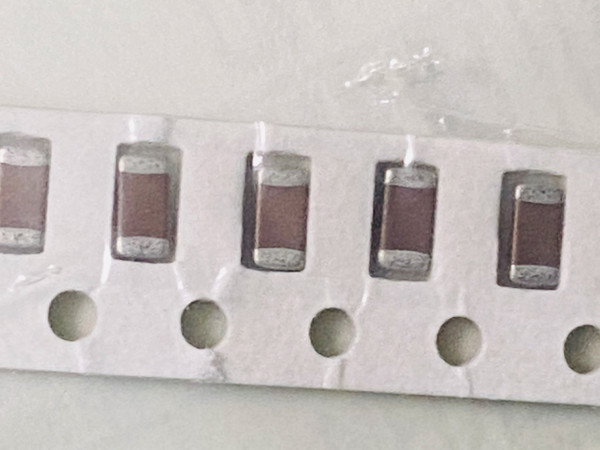

Panasonic's ECU-V line is a general usage surface mount multilayer ceramic family that published parts data now lists as obsolete. Neither frame shows a shelf or a label, just white paper carrier tape against a plain pale background with wrinkled clear film lying over and around it. The wider of the two shows five filled pockets with the sprocket holes running along the bottom edge and a crumpled wisp of that film sitting above them; the closer one holds three pockets, dark red brown bodies, silver end bands gone slightly gray, and no printing on the ceramic visible in either. Ten is the count on the shelf for this part number, more than either frame takes in, and they sell one at a time.
Key Features
- Capacitance: 1500 pF, also written 1.5 nF or 0.0015 uF, from this listing's own name and the 152 capacitance code
- Voltage: 50 V DC (1H voltage code, per Panasonic's published ECU series data)
- Tolerance: +/-10% (K code, per Panasonic's published ECU series data)
- Temperature characteristic: X7R (B code, per the same published data)
- Package: surface mount chip, two terminals, reflow, per published ECU series data
- Operating temperature: -55 degC to +125 degC, per published ECU series data for this family
- Series: Panasonic (Matsushita) ECU-V general usage multilayer ceramic chip capacitor, lifecycle listed obsolete in published parts data
- Case size is not confirmed in published data for this part number, and the trailing M has no published meaning, so we state neither
- Verify against Panasonic's published ECU series data before designing in.
