Product Overview
Siliconix MPSA27 60V 500mA High-Gain NPN Darlington Pair
Condition

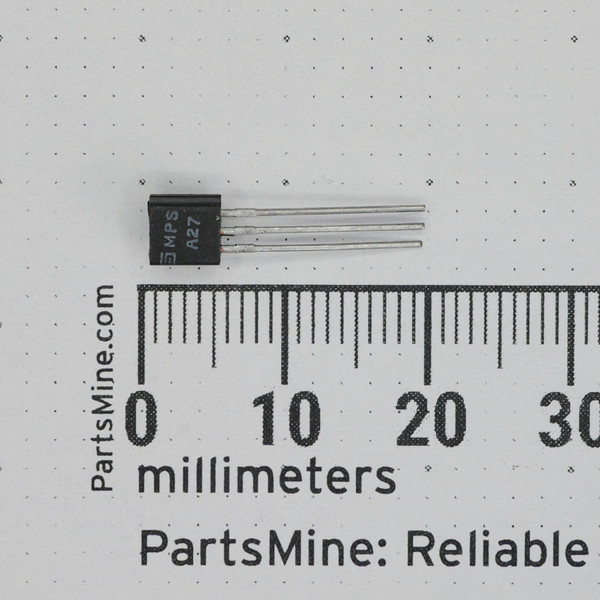

Unused new old stock (NOS). Straight, untrimmed through-hole wire leads. Markings legible: Siliconix logo, MPS A27. Sold individually.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Engineered for high-gain amplification and low-level switching, the MPSA27 pairs two integrated bipolar junctions in a compact through-hole package. With a minimum DC current gain of 10,000 at 100 mA, it allows microamp-level base currents from sensitive logic lines to control collector loads up to 500 mA.
Key Features
- 60 V collector-emitter breakdown voltage (V_CES / V_CEO)
- 500 mA continuous collector current rating (I_C)
- Minimum DC current gain (h_FE) of 10,000 at 100 mA
- 625 mW maximum device power dissipation
- Standard TO-92 plastic package with straight leads
Applications
- Driving relays, indicator lamps, and small solenoids directly from sensitive logic pins
- Audio preamplifier input stages requiring exceptionally high input impedance
- Sensor signal booster circuits and touch-sensitive electronic switches
Frequently Asked Questions
What is the pinout configuration for this TO-92 package?
Looking at the flat face with the leads pointing downward, pin 1 (left) is the emitter, pin 2 (center) is the base, and pin 3 (right) is the collector.
What standard replacements cross-reference to the MPSA27?
Direct industry crosses include the MPS-A27, NTE46, and standard 60V TO-92 NPN Darlington equivalents with matching E-B-C pinouts.
High-gain Darlingtons are the quiet workhorses that turn a whisper from a circuit into enough current to pull a real switch. Drop one into your board, hook up the base, and let two transistors do the heavy lifting in the space of one.
