Single-Phase Industrial Control and Isolating Transformer with Multi-Tap Primary
Condition

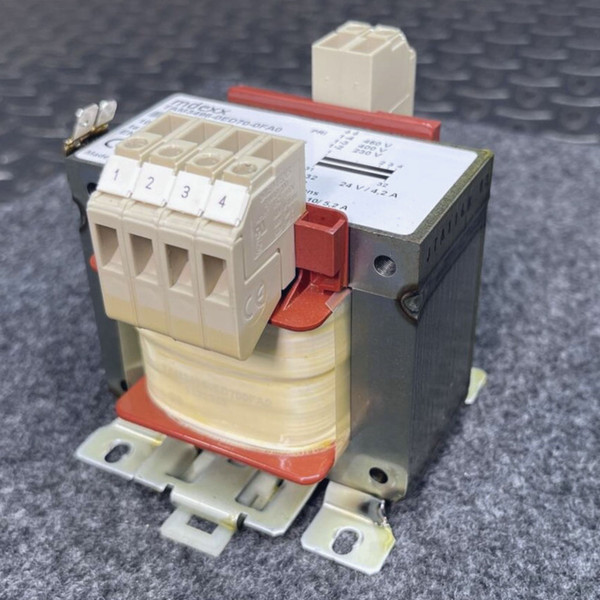

Used. Pulled from a lightly used working machine. Visual inspection only; function testing not performed. Markings legible: mdexx TAM3496-0ED70-0FA0, 100 VA / 310 VA, PRI 460V / 400V / 230V, SEC 24V / 4,2 A, ta 50°C / B 50...60 Hz, EN 61558 Ii0. Base stamped JTA1148 80. Screw terminal blocks and mounting hardware intact.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Built for industrial control enclosures and automation cabinets, the mdexx TAM3496-0ED70-0FA0 isolating transformer steps down common plant supply voltages to safe 24 V AC control power. A multi-tap primary winding accepts 230 V, 400 V, or 460 V AC at 50/60 Hz to output 24 V AC at 4.2 A continuous. The 100 VA continuous rating includes a 310 VA short-time surge capacity to handle high-inrush loads from motor contactor coils, relays, and solenoids without secondary voltage collapse. The rugged laminated core features finger-safe screw-clamp terminals with integrated quick-connect tabs, paired with a dual-purpose base plate for panel bolting or direct 35 mm DIN rail mounting.
Key Features
- Continuous Power Rating: 100 VA with 310 VA short-time inrush capacity
- Multi-Tap Primary: 230 V (terminals 1-2), 400 V (terminals 1-3), 460 V (terminals 1-4) at 50/60 Hz
- Secondary Output: 24 V AC at 4.2 A continuous (terminals 31-32)
- Vector Group: Ii0 single-phase isolation
- Thermal Class: Class B insulation rated for ambient operating temperatures up to 50 °C
- Mounting Options: Slotted chassis mounting footplate with integrated snap-on DIN rail adapter
- Terminal Configuration: Screw-clamp terminals with 6.3 mm quick-connect male tabs
- Safety & Standards: EN 61558 compliant, CE marked, and cURus recognized
Applications
- Stepping down multi-tap line voltages inside industrial machinery cabinets to run 24 V AC contactors, pilot indicators, and control relays.
- Replacing failed Siemens or mdexx control transformers in European-spec machine tools without modifying panel mounting layouts.
- Powering 24 V AC solenoid valve banks, motor starters, and auxiliary control circuits in shop automation projects.
- Bench testing and powering low-voltage HVAC dampers, commercial building controls, or industrial prototyping setups.
Frequently Asked Questions
How are the primary voltage taps wired?
Line power connects across terminal 1 and the tap corresponding to the incoming voltage: terminal 2 for 230 V, terminal 3 for 400 V, or terminal 4 for 460 V. Secondary 24 V AC power is taken across terminals 31 and 32.
Are manuals or mounting screws included?
Not included.
What condition is this transformer in?
This unit was hand-pulled from decommissioned equipment and inspected visually, with screw terminals, winding tape, and core intact. Function testing was not performed. Photos are of the actual stock.
Few things in a control cabinet are more dependable than a solid iron-core transformer that does not care which plant voltage you hand it. Wire the correct tap, latch it to the rail, and get back to work.
