Honeywell WNMN Industrial Wireless Node with Sola SCP 100S24X-CM Power Supply
Condition

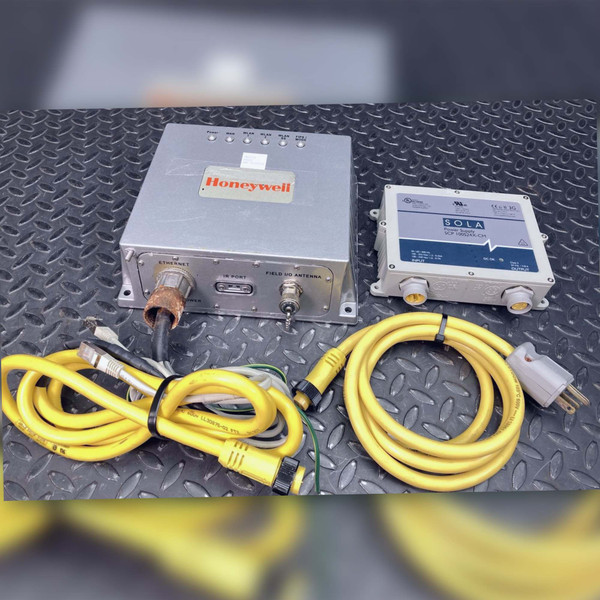

Used. Evaluation: Visual inspection only. Function testing not performed. Device body exhibits exterior surface wear and scuffs; heavy surface oxidation and rust are present on the front cable gland collar. Includes attached Ethernet and power breakout wiring harness, Sola SCP 100S24X-CM 24VDC power supply, and AC line cord. Markings legible: Honeywell WNMN Part No. 51153884-100 Rev. B Serial No. 00637.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Honeywell Model WNMN (part number 51153884-100 Rev. B) is an industrial OneWireless multinode designed for plant-wide mesh routing and field instrument communication. Built in a die-cast enclosure rated NEMA 4X and IP66, it manages simultaneous field sensor input via IEEE 802.15.4 / FHSS and high-throughput data backhaul over IEEE 802.11a/b/g wireless mesh. Paired with a sealed Sola SCP 100S24X-CM 24VDC 3.8A Class 2 switching power supply, this assembly provides an all-weather field access point setup for demanding plant automation environments.
Key Features
- Dual-radio architecture supporting industrial sensor telemetry and 802.11a/b/g Wi-Fi mesh networking
- 24 VDC nominal operating voltage at 25 W maximum power consumption
- Sola SCP 100S24X-CM sealed power supply accepting 100-240 VAC or 100-353 VDC input with 24 VDC 3.8A output
- Die-cast metal enclosure rated NEMA Type 4X and IP66 for outdoor and washdown industrial deployment
- Front panel optical IR port, cable entry feed, and Type-N female Field I/O Antenna connector
- Two rear Type-N antenna connections fitted with tethered protective metal caps
- Top panel LED indicators for Power, WAN, WLAN 1, WLAN 2, WLAN SS, and FIPS / MODE status
- Supplied breakout harness providing dual RJ45 Ethernet jacks and industrial DC power connection
Applications
- Integrating ISA100.11a field transmitters and wireless process sensors into plant DCS networks
- Establishing redundant wireless mesh backhaul in refinery, chemical plant, or water treatment monitoring systems
- Field diagnostic testing and setup using portable industrial Wi-Fi and optical IR interface tools
- Test bench setup or spare assembly for facility maintenance teams keeping OneWireless infrastructure running
Frequently Asked Questions
What power input is required to operate this bundle?
The included Sola SCP 100S24X-CM power supply operates from 100 to 240 VAC (50/60/400 Hz) or 100 to 353 VDC, providing the 24 VDC required by the Honeywell WNMN node.
Are external antennas included with this unit?
Not included. The node features standard Type-N antenna connections covered by protective caps; external antennas must be supplied separately.
What cables are included with the node?
The assembly includes the attached circular entry breakout cable with dual RJ45 plugs and DC power leads, along with a separate AC line cord for the Sola supply.
Does the corrosion on the cable gland collar affect the connector threads or internal wiring?
The rust is isolated to the exterior steel coupling collar of the cable feed. The internal breakout wiring remains securely seated through the gland, but the photos serve as the physical specification for the hardware condition.
Industrial wireless gear built for real plant air, ready to plug right back into the mesh.
