Product Overview
Miniature 1P2T SPDT PCB Mount Vertical Slide Switch
Condition
New condition. Unused component with straight solder pins and clean metal housing.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

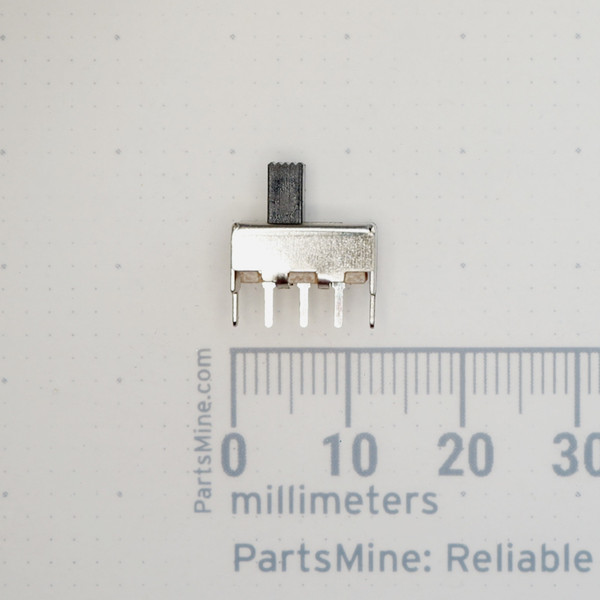

Compact single-pole double-throw (1P2T / SPDT) miniature slide switch rated for 0.5A at 50VDC. Configured with three straight printed circuit board terminals and two outer frame tabs for mechanical through-hole anchoring. Features an upright knurled slide actuator suitable for enclosure cutouts and direct circuit board switching.
Key Features
- Switch Function: SPDT (1P2T, 2-position)
- Current Rating: 0.5 A
- Voltage Rating: 50 VDC
- Mounting: Through-hole PCB mount with 2 frame solder tabs
- Terminals: 3 straight PCB pins
- Actuator: Top vertical knurled slide lever
- Base: Phenolic mounting plate with stamped metal enclosure
Applications
- Selects between battery and external DC power inputs on custom pedal and synth builds.
- Serves as a mode or power toggle on breadboards and through-hole microcontroller shields.
- Replaces broken power or selector switches on audio gear, test fixtures, and consumer electronics.
Frequently Asked Questions
Is this the solder-lug or through-hole PCB version?
This is the through-hole PCB mount version with straight terminal pins and retention solder tabs. For hand-wired applications, consider the solder-lug variant instead.
Can this switch handle AC mains line voltage?
No. This miniature switch is rated for 0.5A at 50VDC low-voltage DC logic and power switching.
Why buy a single through-hole switch here instead of an overseas bulk lot?
Buying just the switch you need saves you from storing dozens of unused components when you only have one board repair or prototype build on your bench. Flat rate shipping is $8, orders over $28 ship free, and orders leave our Idaho warehouse the same or next business day.
A crisp mechanical toggle with just enough resistance to confirm the state change. Solder it in, flip the lever, and put the circuit to work.
Need more than one? More pieces cost less each - the price-break table on this page shows what each quantity costs.
