Contrinex LRS-3031-304 Reflex Photoelectric Sensor - PNP Dark-On, 2000mm Range, IP65, M8 Connector
Condition

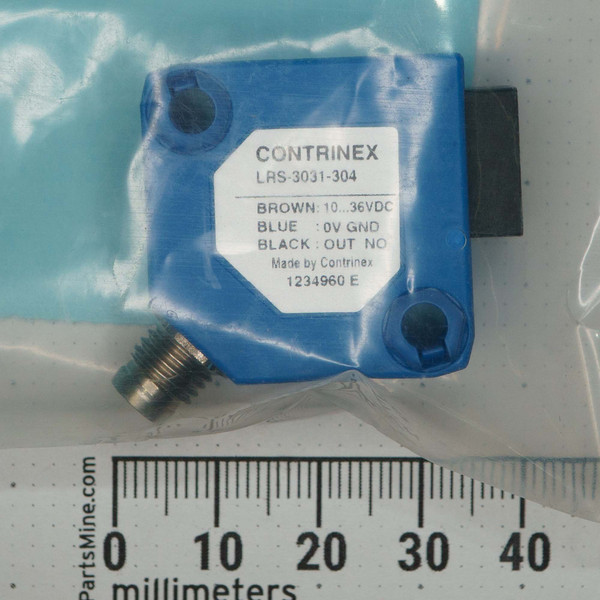

Single unit available. Unused, in original factory-sealed poly bag with label confirmed readable: LRS-3031-304, PNP Dark-On, 10-36 VDC, 2000mm range, cULus Listed, CE marked. M8 connector pins are clean and undamaged. Sourced from a contract manufacturer clearing surplus stock. Reflector not included.
Ships same business day from our Idaho warehouse. Packed carefully.
Backed by our guarantee. Serving customers since 1999.
Product Overview
Contrinex LRS-3031-304 is a compact rectangular retroreflective photoelectric sensor operating on 10-36 V DC with a PNP Dark-On (D.O.) output. Retroreflective operation means the sensor sends a visible red light beam toward a separate reflector and signals output when that beam is interrupted - output is active when an object is detected. The compact 30x30mm housing connects via an M8 3-pin connector to PLCs and standard industrial control systems. Rated IP65 for dust and water resistance.
Key Features
- Operating principle: retroreflective (reflex) - requires a separate reflector
- Output type: PNP Dark-On (D.O.) - output active when beam is interrupted
- Operating voltage: 10-36 V DC (3-wire)
- Max sensing range: 2000 mm (2 meters) with reflector
- Connection: M8 connector, 3-pin
- Switching frequency: 500 Hz
- Protection rating: IP65
- Light source: visible red light, 660 nm
- Housing: 30x30x15 mm rectangular, glass-fiber reinforced PBTP (Crastin), polyurethane resin potted
- Window: scratch-resistant glass
- Certifications: cULus Listed, CE marked (confirmed on label)
Applications
- Object presence detection on conveyors and packaging lines
- End-of-travel or position detection in manufacturing cells
- Material handling and palletizing systems
- Gate or access point monitoring where dark-on (beam-break) logic is required
- PLC-controlled automation lines needing a compact, panel-mount proximity trigger
Frequently Asked Questions
Does this sensor include a reflector?
No. A separate reflector is required for retroreflective operation and is not included with this unit. Contrinex-compatible reflectors are widely available from industrial automation suppliers.
Is this PNP or NPN, and does it matter for my system?
This is a PNP output sensor. The output switches positive voltage to the load when active. If your PLC or controller requires an NPN (sinking) input, this sensor is not compatible without signal conversion. Verify your input card type before ordering.
What does Dark-On switching mean?
Dark-On means the output is active when the light beam is interrupted - that is, when an object is present and blocking the return beam. If you need the output active when the beam is received (Light-On / normally open by beam), you need a different variant. Confirm your switching logic matches your application before ordering.
What power supply does this sensor require?
10-36 V DC. AC power supplies are not compatible. The power supply should include a smoothing capacitor and must not exceed the no-load voltage rating. Standard 24 V DC industrial supplies are typical for this class of sensor.
What connector and wiring does this sensor use?
M8 3-pin connector. Wiring is Brown (V+), Blue (GND), Black (signal output). Verify your existing harness or cable assembly uses an M8 3-pin mating connector before installation.
A retroreflective sensor is one of the cleaner object-detection setups in industrial automation - one sensor, one reflector, no through-beam alignment headache. This Contrinex unit goes in unused, so whoever puts it to work gets the full service life. The reflector is the only thing standing between you and a live installation.
