Banner SC10-2roe Safety Controller: Ten Inputs, Two Force-Guided Relay Outputs, Cat. 4 PL e
Condition

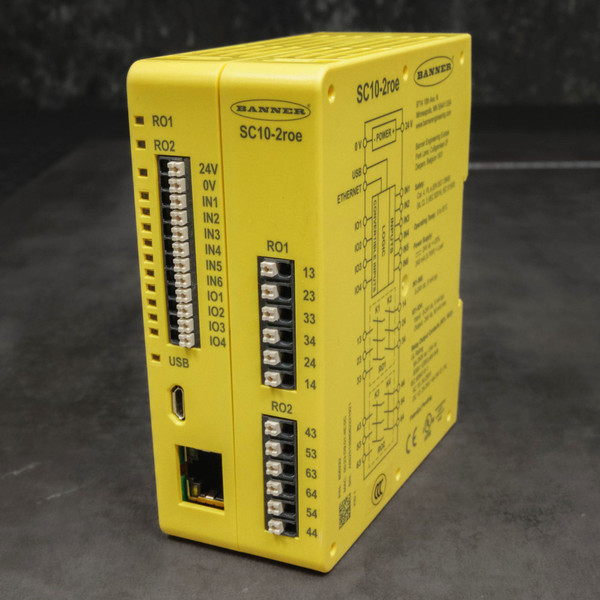

Used. Excellent cosmetic condition with no issues noted during visual inspection. Sourced from demanufactured equipment that was never put into service. Untested. In the photos the yellow housing is clean and unmarked, all twenty-four terminal positions are populated with their connectors seated, the micro-USB and RJ45 jacks are clear, and the black DIN rail latch and its springs are intact on the back. Both printed side faces are fully legible, including the wiring diagram, the LED status legend, the wire preparation callout and the data plate carrying P/N 806222, a MAC address and a serial number. One unit in stock, and it is the unit in the photos.
Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The Banner Engineering SC10-2roe is a fixed I/O safety controller that puts ten safety inputs and two force-guided relay output channels on one DIN rail block instead of a row of discrete safety relays. The markings on the housing split the input side into six dedicated inputs, IN1 through IN6, rated 0-24V dc at 5 mA typical, and four convertible points, IO1 through IO4, that can each work as an input on the same 0-24V dc, 5 mA basis or as a 24V dc output rated 80 mA maximum. The two output channels are RO1, on terminals 13, 23, 33, 34, 24 and 14, and RO2, on terminals 43, 53, 63, 64, 54 and 44, each driven by a force-guided relay pair drawn on the label as K1/K2 and K3/K4. The safety ratings printed on the unit are Cat. 4, PL e (EN ISO 13849) and SIL CL 3 (IEC 62016, IEC 61508) exactly as the housing prints them, and the same face carries the cULus Listed Programmable Safety Controller (NRGF) mark along with CE and CCC. Power is 24V dc +/-20% at 240 mA, 5.76 W plus load, the marked operating range is 0 to 55°C, and the terminals take 0.2 mm² to 2.08 mm² conductors (24 AWG to 14 AWG) stripped 8 to 9 mm. Configuration is loaded through the micro-USB port on the front using Banner's safety controller software; the front also carries an RJ45 Ethernet jack, and the data plate lists a MAC address for it. Not confirmed - verify against the datasheet which network functions and protocols that port supports before you design around it.
Key Features
- Ten safety inputs: six dedicated (IN1 through IN6) plus four convertible points (IO1 through IO4)
- IN1 through IN6 rated 0-24V dc, 5 mA typical
- IO1 through IO4 as input 0-24V dc, 5 mA typical, or as output 24V dc, 80 mA maximum
- Two force-guided relay output channels, RO1 and RO2, across twelve output terminals
- Relay contacts UL rated 6A at 250V ac / 24V dc, B300 / Q300 pilot duty
- Relay contacts per IEC 60947-5-1: AC-15 3A at 250V, DC-13 2A at 24V or 4A at 24V, 0.1 Hz
- Cat. 4, PL e (EN ISO 13849) and SIL CL 3 (IEC 62016, IEC 61508) as marked on the housing
- Power supply 24V dc +/-20%, 240 mA (5.76 W) plus load
- Marked operating temperature range 0 to 55°C
- Micro-USB configuration port and RJ45 Ethernet jack on the front face
- Terminals accept 0.2 mm² to 2.08 mm² conductors (24 AWG to 14 AWG), 8 to 9 mm strip length
- Status LEDs for power, IN1 through IN6, IO1 through IO4, RO1, RO2 and USB, with the red and green solid/flashing legend printed on the housing
- cULus Listed Programmable Safety Controller (NRGF), CE and CCC marked
- DIN rail mount body with a sprung latch on the back
Applications
- A plant electrician rebuilding a guarding panel, collapsing a bank of single-function E-stop and gate relays into one block with RO1 on the main contactor pair and RO2 on a zone stop
- A machine builder bringing a two-hand control station, a light curtain and an interlocked door into one controller and carrying the Cat. 4, PL e rating through the whole circuit
- An integrator who needs a matching spare for a cell already running an SC10-2roe, loaded over micro-USB from the existing project file during a planned outage
- A training lab or test bench building a functional safety demonstrator where the front LEDs report every input, output and fault state without a laptop attached
Frequently Asked Questions
How many inputs is it really, and what does the 2roe suffix mean?
Ten, arranged as six dedicated safety inputs (IN1 through IN6) and four convertible points (IO1 through IO4) that can be wired as inputs or used as 24V dc, 80 mA outputs. The 2roe suffix describes the output side: two relay output channels, each using a force-guided relay pair, drawn on the housing diagram as K1/K2 for RO1 and K3/K4 for RO2.
What can the relay contacts switch?
The UL rating printed on the housing is 6A at 250V ac or 24V dc, B300 / Q300 pilot duty. Under IEC 60947-5-1 the same contacts are rated AC-15 3A at 250V and DC-13 2A at 24V, or 4A at 24V switching at 0.1 Hz. These are mechanical relay contacts, so contact life follows load and cycle rate; this is not the controller to pick for high frequency jogging duty.
What is included, and how is it configured?
What appears in the photos is the controller itself. No USB cable, memory module, software license or printed manual is included. Configuration is loaded through the front micro-USB port with Banner's safety controller software, which you obtain from Banner.
Does it hold a configuration right now?
We have not powered it up, so we cannot tell you whether it carries a program or sits at factory default. The LED legend printed on the housing covers exactly that question, with separate USB indications for configured with a USB match, configured with USB not connected, not configured at factory default, and configured with a USB mismatch fault. First power-up will tell you which state you have.
It is sold untested, so what am I actually taking on?
You are taking on the electrical verification. This one sells as-is: it came out of demanufactured equipment that was never put into service, it is cosmetically excellent, and we did not power it, load a configuration or exercise the relays. What you get in return is one specific controller, photographed from every printed face, with the ratings, terminal numbering and data plate legible in the images rather than promised in a bin listing, and a no-hassle satisfaction guarantee if it is not what the photos and the label say it is. This item clears our $28 free shipping threshold on its own, and orders leave our Idaho warehouse the same or next business day.
Banner printed the entire wiring schematic on the side of the housing, which tells you something about who they expected to be holding it. Put it on the rail, teach it your gates and your E-stops, and it becomes the one part of the machine whose whole job is saying no.
