2N3903 NPN Small-Signal Transistor, TO-92, 40V 200mA General-Purpose Amplifier and Switch
Condition

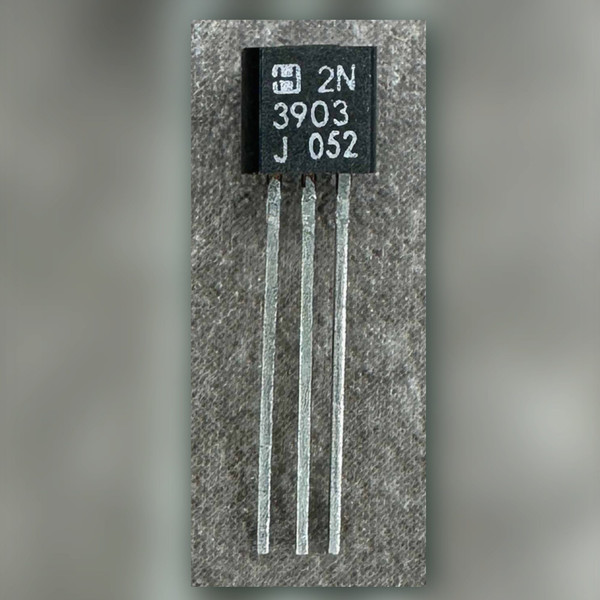

Unused new old stock (NOS), made by Harris Semiconductor. Markings legible: Harris logo, 2N 3903, J 052. Leads straight and bright. Sold each.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. Satisfaction guaranteed, every time.
Product Overview
Harris 2N3903, a silicon NPN bipolar transistor built as a general-purpose amplifier and switch in the TO-92 plastic package. It is the lower-gain JEDEC grade beside the 2N3904.
Key Features
- Silicon NPN bipolar junction transistor, general-purpose amplifier and switch
- VCEO 40 V, VCBO 60 V, VEBO 6.0 V
- Collector current 200 mA continuous; power dissipation 625 mW
- DC current gain hFE 50 minimum at 10 mA (VCE 1 V)
- Transition frequency fT 250 MHz minimum
- TO-92 plastic package, three in-line leads, 19 mm overall length including leads
Applications
- Replacing a 2N3903 called out in a vintage board's parts list with a Harris-marked part of the same number
- Switching an LED, small relay or buzzer from a logic output within the 200 mA collector rating
- Building a small-signal audio or sensor preamp stage on the breadboard
Frequently Asked Questions
Is the 2N3903 NPN or PNP?
NPN. The PNP counterpart in the same general-purpose family is the 2N3905.
Can a 2N3903 stand in for a 2N3904?
They fill the same small-signal role, but the 2N3903 is the lower-gain grade: hFE 50 minimum at 10 mA, against 100 minimum for the 2N3904. A circuit that leans on high gain wants the 2N3904.
The square H logo belongs to Harris, a maker that no longer builds small-signal silicon, while the 2N3903 number it wears is still in production today. This one has never seen a circuit, and the next board that needs it is yours.
