Low-Profile I-Type 9-Volt Battery Snap Harness with 140mm Color-Coded Leads
Condition
PartsMine Brand house stock with clean pre-tinned wire leads and intact vinyl boot. Sold each.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

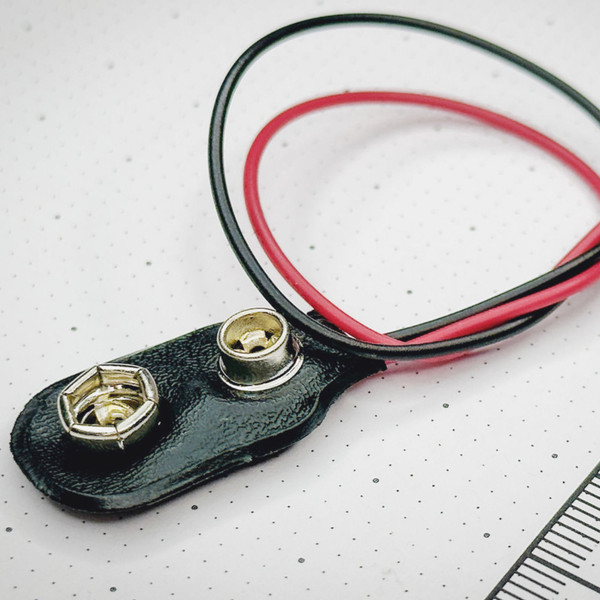

Engineered for compact enclosures and direct DC connections, the PartsMine A-656 I-type snap harness connects standard 9-volt batteries to circuits and project boxes. Flexible black vinyl covers the nickel-plated terminals, while 140 mm color-coded 26 AWG leads route power cleanly to switches, boards, and breadboards.
Key Features
- Standard 9V (PP3 / 6LR61) snap interface with one male stud and one octagonal female socket
- Nickel-plated metal contacts ensure positive physical retention and low contact resistance
- Flexible black textured vinyl boot provides strain relief and insulation over rear terminals
- 140 mm color-coded 26 AWG stranded copper wire leads (red positive, black negative)
- Pre-stripped and tinned wire ends for quick soldering or screw-terminal connection
- I-type straight in-line lead exit profile for tight installations
Applications
- Soldering direct 9V power inputs onto guitar effect pedals and audio preamps
- Wiring breadboard power rails, Arduino shields, and microcontroller prototyping rigs
- Replacing broken, cracked, or corroded battery clips in test meters, smoke alarms, and handheld instruments
- Building standalone battery packs and LED bench test rigs for workshop troubleshooting
Frequently Asked Questions
Which terminal is positive and which is negative?
The octagonal female snap terminal connects to the battery positive stud, wired to the red lead. The round male stud mates with the battery negative socket, wired to the black lead.
What wire gauge and length are attached to the snap?
The connector features 140 mm stranded copper leads insulated in PVC at 26 AWG, with factory-stripped and pre-tinned wire ends ready for soldering.
Will this snap fit heavy-duty or rechargeable 9V batteries?
Yes. The clip uses standard PP3 snap dimensions, fitting alkaline, carbon-zinc, lithium, and rechargeable NiMH 9-volt battery terminals. Order more and each piece costs less - the price-break table on this page spells it out.
Almost every bench build starts with a humble 9-volt snap and a switch. Solder this into your enclosure and put real portable power behind your circuit.
