Product Overview
KOA Speer KQ0805 Chip Inductor, 0805 SMD
Condition
Unused, New Old Stock; clean and in excellent condition. The photo shows a representative unit from our stock. Same or next business day shipping from our Idaho warehouse. Honest pricing, no nonsense. Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

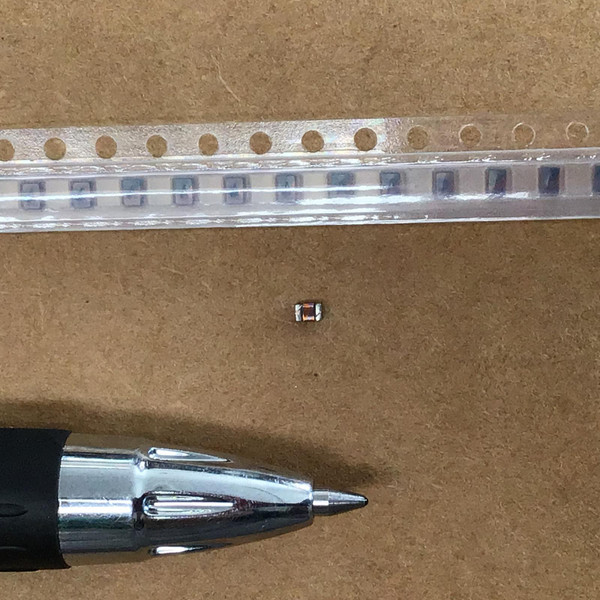

The photo shows 0805 chip inductors in clear carrier tape, one chip per pocket, and one loose chip with a copper-coloured winding sitting between silver end terminations; no printing is visible in these photos. KOA Speer publishes the KQ line as its high-Q wire-wound chip inductor family. The inductance in our old title does not survive a check against KOA Speer's published KQ0805 range, so it is off this page until a reel label is photographed.
Key Features
- Package: 0805, 2012 metric, surface mount
- Seen on the loose chip in these photos: a copper-coloured winding between silver end terminations
- KQ0805 inductance range per KOA Speer's published KQ series data: 3.3 nH to 820 nH
- KQ tolerance codes per the same data: G +/-2%, J +/-5%, K +/-10%
- KQ operating temperature range per the same data: -40 C to +125 C
- Inductance and tolerance of this stock: not verified, so not published here
- Shelf count 194,980 pieces, sold each
- Verify against KOA Speer's published KQ series data before designing in.
Applications
- RF impedance matching on a 0805 footprint
- Bench rework and repair of surface-mount RF boards
- Prototype filter and tuned-circuit work where the value is measured, not assumed
- Stocking a small-value chip inductor pocket in a shop tape rack
Frequently Asked Questions
How many should I order?
Order the count your build needs. Our shelf count is 194,980 pieces, so a five-piece bench handful and a several-thousand-piece run both come off the same stock. Shipping is $8 flat rate and free on orders over $28, so small parts like this ship smartest as part of a larger order.
Why does this page not list an inductance?
Because the full part number in our old title does not parse against KOA Speer's published KQ ordering grammar, and 0.107 uH is not a catalogue value in the KQ0805 range at all. No printing is visible in these photos, and no reel, carton or tape label is in frame, so there is nothing to read the value off. Ask us before you order and we will photograph the stock packaging and any label on it.
A chip this size keeps its own counsel, so we would rather show you the tape than a number we cannot read off it.
