Jim-pak CY3.57 3.579545 MHz HC-18/U NTSC Quartz Crystal Resonator
Condition

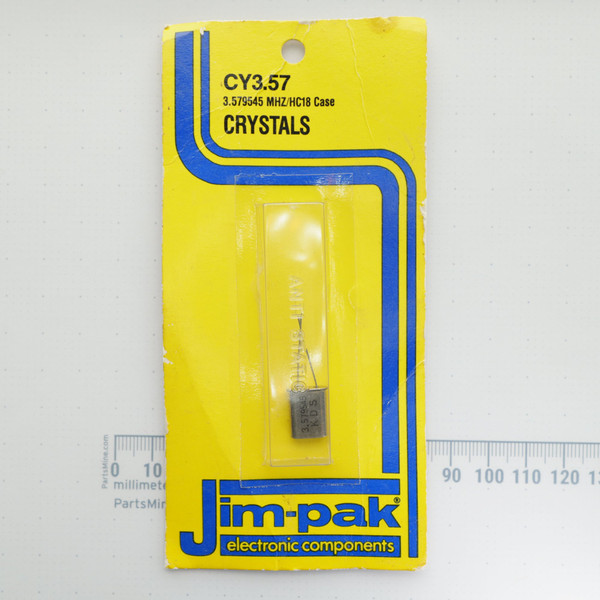

New old stock, unopened in original retail packaging. Crystal can and wire leads remain factory sealed under clear blister. Can marked 3.579545 KDS.
Ships same or next business day from our Idaho warehouse. Honest pricing, no nonsense.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The Jim-pak CY3.57 is a 3.579545 MHz fundamental quartz crystal resonator housed in a standard through-hole HC-18/U metal can. Produced by KDS (Daishinku Corp) for the Jim-pak component line, this frequency serves as the standard NTSC colorburst reference for vintage video hardware, microcontrollers, and clock generation circuits.
Key Features
- Nominal frequency: 3.579545 MHz (NTSC colorburst reference)
- Package style: HC-18/U (HC-49/U compatible profile) metal can
- Mounting: 2-pin radial through-hole wire leads
- Original component manufacturer: KDS (Daishinku Corp)
Applications
- Restoring or calibrating vintage video game consoles, home computers, and composite video circuits requiring an NTSC color subcarrier reference.
- Generating precise timing bases in DTMF tone generators, retro microcontroller clocks, and amateur radio projects.
Frequently Asked Questions
What case style is this crystal?
This unit is packaged in a classic through-hole HC-18/U metal can with two radial wire leads, electrically and physically interchangeable with common HC-49/U packages.
What do the markings on the metal can indicate?
The top line is marked 3.579545 for the rated frequency in megahertz, and the bottom line is marked K D S, designating manufacture by Daishinku Corp.
Why choose this individually packaged Jim-pak crystal?
You receive the exact factory-sealed vintage component shown, avoiding mixed surplus lots and salvaged leads. Standard shipping is $8 flat rate, free on orders over $28, and your order ships from our Idaho warehouse the same or next business day.
A crisp NTSC colorburst frequency sealed on an authentic Jim-pak card - ready to drop right onto the bench and bring vintage timing back into lock.
