Product Overview
MOSEL MS6516L 16K (2K x 8) Low-Power CMOS Static RAM DIP-24
Condition

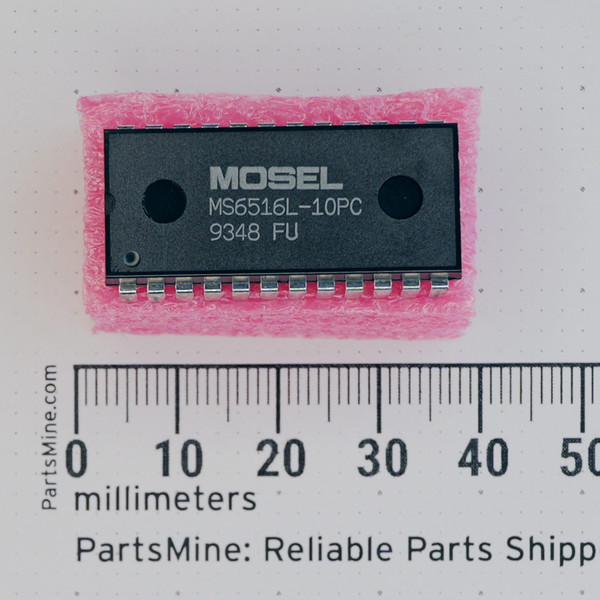

Sourced from inventory and classified as Used. Evaluation: Visual inspection only. Function testing not performed. Top surface markings legible: MOSEL MS6516L-10PC 9348 FU. Package pins intact in dual in-line layout.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
The MOSEL MS6516L-10PC is a 16,384-bit high-speed, low-power CMOS Static RAM organized as 2,048 words by 8 bits (2K x 8). Housed in a standard 24-pin dual in-line package, this parallel SRAM device features a 100ns access time, single 5.0V supply operation, and TTL-compatible inputs and outputs with three-state bus control.
Key Features
- Memory Architecture: 16 Kbit CMOS Static RAM organized as 2,048 x 8 bits
- Access Speed: 100 ns maximum access time
- Power Profile: Low-power L-version for reduced standby current consumption
- Supply Voltage: 5.0 V single rail operation
- Interface: Fully TTL-compatible inputs and three-state outputs
- Package: 24-pin Dual In-line Package (DIP-24) through-hole form factor
Applications
- Replacing failed byte-wide SRAM chips in vintage 8-bit computer systems and retro arcade boards
- Servicing legacy industrial automation controllers and embedded CPU mainboards
- Prototyping breadboard-level 6502, Z80, or 6800 microprocessor circuits requiring parallel static memory
Frequently Asked Questions
What is the pin count and package format of this memory IC?
This chip is configured in a standard 24-pin plastic dual in-line package (DIP-24) designed for through-hole PCB mounting or socket insertion.
What supply voltage and speed rating does this IC require?
The MS6516L-10PC runs on a standard 5.0V power supply and is rated for a 100ns access time.
Why choose an individually cataloged piece instead of an untested bulk lot?
Selecting an individually cataloged component provides clear visible markings and specific date codes without having to buy surplus multipacks of unknown origin. Domestic orders ship for an $8 flat rate, qualify for free shipping at $28, and depart our Idaho warehouse the same or next business day.
Keeping vintage eight-bit hardware running always comes down to having the right byte-wide RAM on hand when a bus line fails. Drop this parallel static RAM into the socket and bring that classic build back to life.
