Product Overview
Motorola MC14512BCP 8-Channel CMOS Data Selector DIP-16 Multiplexer
Condition

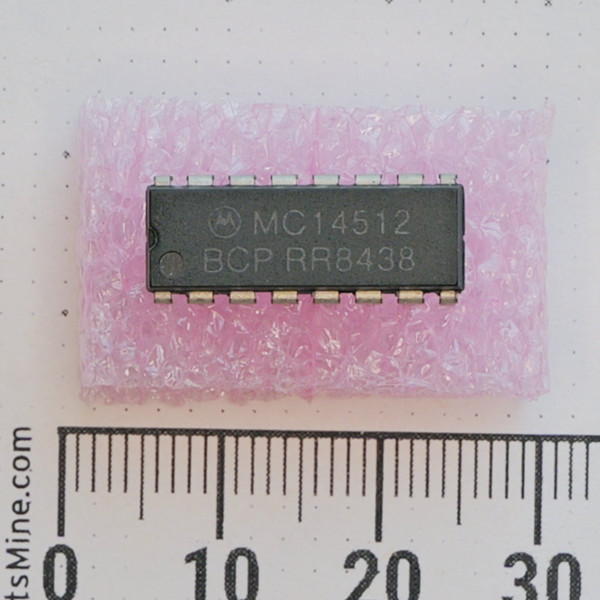

Used equipment pull. Markings legible: Motorola logo, MC14512, BCP RR8438. Evaluation: Visual inspection only. Function testing not performed. Photos show the specific unit you will receive.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Motorola MC14512BCP 8-channel CMOS data selector and multiplexer in a 16-pin plastic DIP package. Constructed with MOS P-channel and N-channel enhancement mode devices in a monolithic structure. Features 3-bit binary address inputs (A, B, C), an Inhibit input, and 3-state output control for bussing multiple units together.
Key Features
- 3.0 V to 18 V DC supply voltage operating range
- 8-channel data selection to single 3-state output
- 3-bit binary address decoding
- Inhibit control forces output low when active
- Diode protection on all inputs against static discharge
- Standard 16-pin dual in-line package (DIP-16)
Applications
- Routing parallel digital data buses in vintage computing and industrial control boards
- Signal multiplexing in breadboard prototypes and modular synthesizer logic sections
- Restoring legacy electronics requiring original Motorola 4000/14000-series CMOS logic
Frequently Asked Questions
What is the pin count and package type for this logic IC?
It is a standard 16-pin plastic dual in-line package (DIP-16, 0.3-inch row spacing) suitable for breadboards, sockets, or direct through-hole PCB soldering.
What logic family is the MC14512BCP compatible with?
The MC14512BCP is part of the standard CMOS 4000/14000 series (equivalent to generic 4512 logic) and operates across a 3V to 18V supply range.
Why buy a single pulled Motorola MC14512BCP here instead of a multi-pack?
Buying a single verified piece lets you repair a specific circuit board or finish a project without purchasing surplus lots you will not use. Every order ships from our Idaho warehouse for a flat $8 rate, ships free once your order reaches $28, and leaves same or next business day.
Original Motorola silicon from the golden era of 4000-series CMOS, ready to drop straight into your socket and keep a legacy logic bus humming.
