Vintage Jim-pak CD4001 Quad 2-Input NOR Gate CMOS IC Motorola MC4001A NOS

Vintage Jim-pak CD4001 Quad 2-Input NOR Gate CMOS DIP-14 Logic IC

Condition

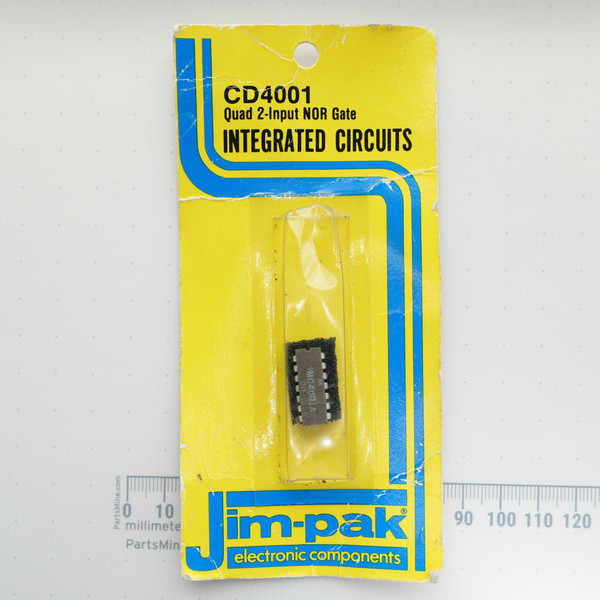

New old stock. Unopened vintage Jim-pak retail packaging. Internal component is a 14-pin DIP marked with the Motorola emblem, MC4001A, and date code 7519. Unused and well preserved.

Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.

We are here for our customers, with a no-hassle satisfaction guarantee.

Product Overview

Distributed under Jim-pak part number CD4001, this package contains an original Motorola MC4001A quad 2-input NOR gate. Built on standard 4000-series CMOS logic in a 14-pin dual in-line package (PDIP-14), it operates across a wide 3V to 15V supply range. Ideal for vintage synthesizer repairs, period-accurate computer restorations, or classic hobby electronics projects requiring authentic mid-1970s silicon.

Key Features

• Logic function: Quad 2-input NOR gate
• Logic family: 4000-series CMOS
• IC body markings: Motorola logo, MC4001A, date code 7519 (1975)
• Package type: 14-pin plastic dual in-line package (DIP-14)
• Mounting type: Through-hole
• Supply voltage range: 3V to 15V

Applications

• Restoring mid-1970s audio synthesizers, drum machines, and test gear using period-correct Motorola logic.
• Repairing legacy industrial control boards and early microcomputer peripheral cards.
• Breadboarding low-power CMOS logic experiments, pulse generators, and flip-flop circuits.

Frequently Asked Questions

Why does the card say Jim-pak while the chip is marked Motorola?

Jim-pak was an electronic component distributor that packaged original manufacturer semiconductors into retail blister cards for hobbyists, schools, and repair shops. The enclosed integrated circuit was manufactured by Motorola.

What does the 7519 date code indicate?

The four-digit code signifies production during the 19th week of 1975 at a Motorola semiconductor manufacturing facility.

Why buy this single packaged unit instead of hunting a bulk lot?

You receive the exact unopened vintage Jim-pak card shown in the photos, with verified markings and intact pins, without buying excess components you do not need. Ships for an $8 flat rate, free on orders over $28, departing our Idaho warehouse the same or next business day.

Four NOR gates, fifteen volts of headroom, and forty-nine years of shelf patience ready to plug right into the breadboard.
